PE7203-6

Overview

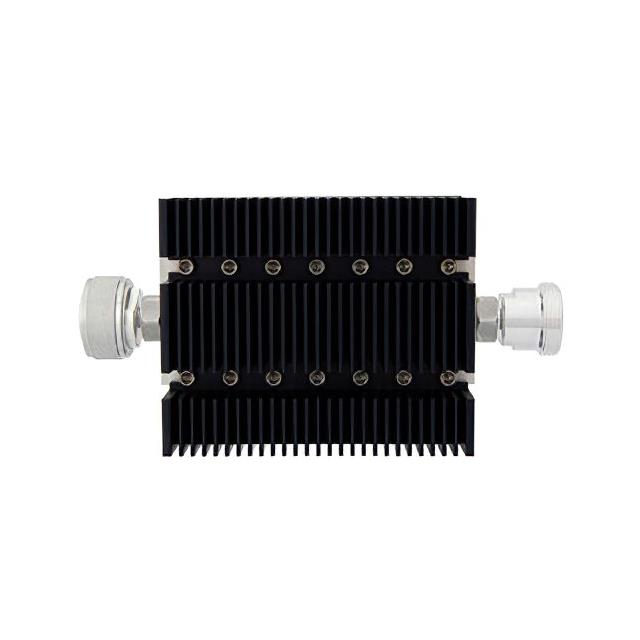

The Pasternack PE7203-6 is a fixed RF attenuator module designed for high-power applications. It provides a nominal attenuation of 6 dB with a frequency range extending from 0 Hz to 6 GHz. The device features 7/16 DIN male-to-female connectors and is rated for 100 Watts of power handling at the specified attenuation value. Constructed as an in-line hexagonal module, it ensures stable performance in microwave systems requiring precise signal reduction.

Feature Summary

• Provides fixed 6 dB attenuation across a wide frequency spectrum up to 6 GHz
• Supports high power handling capability rated at 100 Watts
• Utilizes robust 7/16 DIN connector interface for secure mating

Applications

• Microwave signal conditioning and level adjustment
• High-power RF test and measurement setups
• Telecommunications infrastructure signal management

Procurement Notes

Verify the specific connector gender configuration and physical dimensions against system requirements before integration. Confirm that the operating environment remains within the stated 0 Hz to 6 GHz frequency range to ensure optimal attenuation accuracy. Ensure power levels do not exceed the 100 Watt rating during continuous operation to prevent thermal damage or performance degradation.

Selection Notes

Select this component when a fixed 6 dB reduction is required in high-power environments. The 7/16 DIN interface suits heavy-duty applications compared to smaller connectors. Consider the hexagonal form factor for ease of installation in rack-mounted or panel-mounted configurations where space allows for larger modules.

Part Context

This model belongs to Pasternack's line of fixed RF attenuators, specifically engineered for microwave frequencies. It complements other modular attenuators by offering high power handling capabilities suitable for demanding industrial and communication systems. The product series focuses on reliability and consistent performance across broad bandwidths.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
