PE7204-10

Overview

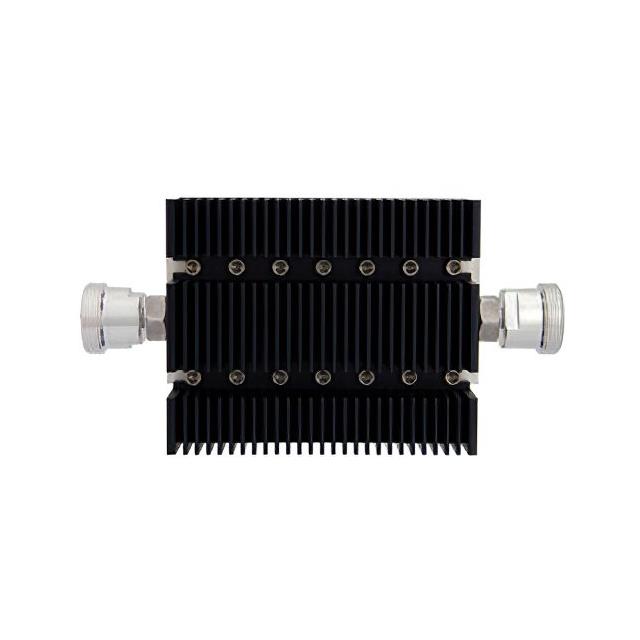

The Pasternack PE7204-10 is a fixed 10 dB attenuator featuring 7/16 DIN female connectors on both input and output ports. Designed as an in-line, resistive PI attenuator pad, this coaxial component operates within a 50 Ohm impedance system. It provides directional performance with a frequency rating extending up to 6 GHz. The unit is engineered to handle power levels rated at 100 Watts at the stated attenuation value, ensuring reliable signal management in high-power RF applications.

Feature Summary

• Fixed 10 dB attenuation value
• Resistive PI attenuator pad design
• Directional performance capability
• 7/16 DIN female connector interface

Applications

• RF signal level reduction in microwave systems
• Test and measurement equipment calibration
• High-power RF circuit protection
• Signal conditioning for 6 GHz bandwidth applications

Procurement Notes

Verify the specific datasheet version for the PE7204-10 to confirm current manufacturing status and compliance details. Ensure that the required 100 Watt power handling and 6 GHz frequency range align with your system specifications before ordering. Cross-reference the 7/16 DIN female interface compatibility with existing cabling infrastructure to prevent connection mismatches.

Selection Notes

Select the PE7204-10 when a precise 10 dB attenuation is required in a 50 Ohm environment. This model is suitable for applications demanding high power handling up to 100 Watts. Consider the 7/16 DIN connector type for robust mechanical connections. Evaluate if the 6 GHz upper frequency limit meets the operational bandwidth requirements of the intended RF system.

Part Context

This component belongs to the Pasternack PE7204 series of fixed attenuators. The series includes variants with different attenuation values such as 20 dB, 30 dB, and 40 dB, all sharing similar 7/16 DIN female interfaces and power ratings. These devices are part of Pasternack's broader portfolio of RF and microwave interconnect components designed for industrial and commercial use.

Replacement Considerations

Compatible substitutes include other Pasternack models from the same series, specifically PE7204-20, PE7204-30, and PE7204-40, which offer different attenuation values but maintain identical connector types and power ratings.
