PE7204-60

Overview

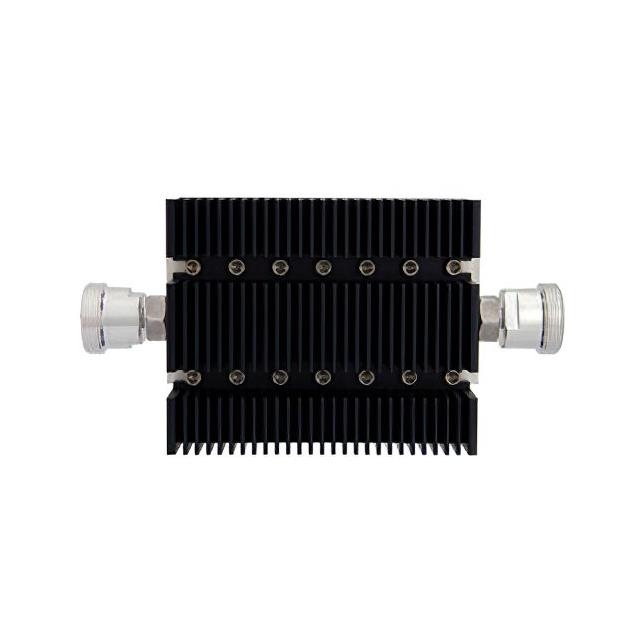

The PE7204-60 is a fixed RF attenuator manufactured by Pasternack. It provides a nominal attenuation of 60 dB with a frequency range from DC to 6 GHz. The device features 7/16 DIN female connectors on both input and output ports. It operates at an impedance of 50 Ohms and supports a maximum power handling capacity of 100 Watts. The unit utilizes a hexagonal in-line module design for secure installation.

Feature Summary

• Provides precise 60 dB signal reduction across a wide bandwidth up to 6 GHz
• Features robust 7/16 DIN female-to-female interface connections
• Supports high power applications with a 100 Watt rating
• Utilizes a durable hexagonal in-line module construction

Applications

• RF signal level adjustment in microwave test setups
• Attenuation in high-power communication systems
• Signal conditioning in radar equipment
• Integration into coaxial cable assemblies requiring fixed loss

Procurement Notes

Verify the specific connector gender and interface type against system requirements before ordering. Confirm that the 100 Watt power rating aligns with peak operational loads. Ensure the 6 GHz frequency limit meets the application's spectral needs. Check manufacturer documentation for detailed VSWR specifications and thermal management guidelines.

Selection Notes

Select this component when a fixed, high-power attenuation solution is required for frequencies up to 6 GHz. The 7/16 DIN interface offers superior performance compared to smaller connectors in high-power scenarios. Consider the physical size of the hexagonal module during mechanical integration planning.

Part Context

This model belongs to Pasternack's line of fixed RF attenuators designed for microwave and radio frequency applications. These components are engineered to provide stable attenuation values without active power sources. The series typically includes various attenuation levels and connector types to suit different system architectures.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material. Verify compatibility with existing 7/16 DIN interfaces if sourcing alternatives.
