PE7205-10

Overview

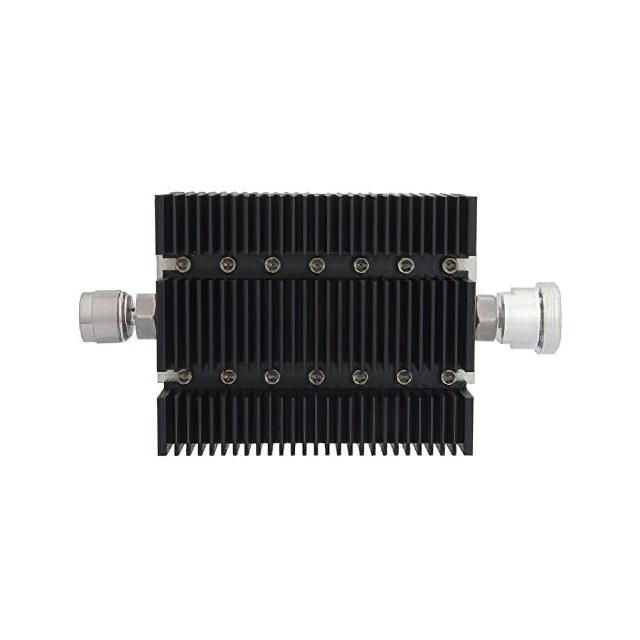

The Pasternack PE7205-10 is a fixed RF attenuator designed for microwave applications. It provides a precise attenuation value of 10 dB. The component utilizes N Male to 7/16 DIN Female connectors for interface connectivity. It operates effectively up to a frequency of 6 GHz. The unit is rated to handle up to 100 Watts of power at the stated attenuation level. This configuration supports robust signal management in high-power transmission environments.

Feature Summary

• Provides fixed 10 dB attenuation for consistent signal reduction
• Supports operation up to 6 GHz frequency range
• Rated for 100 Watts power handling capacity
• Features N Male to 7/16 DIN Female connector interfaces

Applications

• Microwave signal testing and measurement systems
• High-power RF transmission line attenuation
• Laboratory equipment signal conditioning
• Telecommunications infrastructure testing

Procurement Notes

Verify the specific connector gender and interface type against system requirements before ordering. Confirm that the 100 Watt power rating aligns with operational peak loads. Ensure the 6 GHz frequency limit meets application bandwidth needs. Check for any environmental sealing requirements if used outdoors. Validate mechanical dimensions for panel mounting compatibility.

Selection Notes

Choose this model when a fixed 10 dB reduction is required between N Male and 7/16 DIN Female ports. Select for applications demanding high power handling up to 100 Watts. Consider for systems operating within the DC to 6 GHz spectrum. Opt for this fixed variant over variable types when attenuation stability is critical. Ensure impedance matching requirements are met by the 50 Ohm design.

Part Context

This component belongs to the Pasternack fixed attenuator series, specifically engineered for microwave frequencies. It bridges different connector standards, allowing integration between N-type and 7/16 DIN systems. The product focuses on durability and power handling capabilities suitable for industrial and laboratory settings. It serves as a passive device for precise signal level adjustment without active components.

Replacement Considerations

• PE7205-10LF
