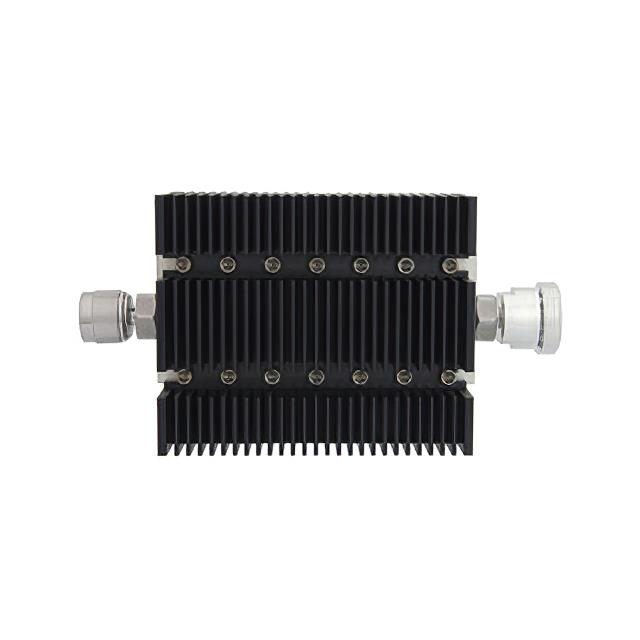

PE7205-30

$834.50

Description：30 dB Fixed Attenuator, N Male T
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:cf1ff072c30a Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：30 dB Fixed Attenuator, N Male T
Series：-
Mfr：Pasternack
Package：Retail Package
Attenuation Value：30dB
Frequency Range：0 Hz ~ 6 GHz
Power (Watts)：100W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：Module

Download product information

PE7205-30

Overview

The Pasternack PE7205-30 is a fixed 30 dB attenuator designed for RF applications. It features an in-line, resistive PI attenuator pad design and operates within a 50 Ohm coaxial system. The component supports a frequency range of 0 Hz to 6 GHz. It is rated for a maximum input power of 100W and maintains a maximum VSWR of 1.2:1.

Feature Summary

Utilizes an in-line resistive PI attenuator pad design for signal reduction
Operates as a 50 Ohm coaxial component
Supports frequency range from DC to 6 GHz

Applications

RF signal attenuation
Production systems requiring precise measurement
Coaxial circuit impedance matching

Procurement Notes

Verify the specific datasheet for the PE7205-30 to confirm exact connector types and physical dimensions. Ensure the application environment does not exceed the 100W power rating or 6 GHz frequency limit. Cross-reference with official Pasternack documentation to validate performance characteristics against system requirements before procurement.

Selection Notes

Select this model when a fixed 30 dB attenuation is required within a 50 Ohm system up to 6 GHz. Consider the 100W power handling capability for high-power applications. Verify that the connector interfaces match the existing infrastructure. Compare against other Pasternack attenuators if higher frequency or different power ratings are needed.

Part Context

Pasternack manufactures a broad range of RF, microwave, and millimeter wave components. The PE7205-30 belongs to their fixed attenuator line, which provides reliable signal control. These components are typically used in test equipment, communication systems, and industrial applications where precise signal level adjustment is critical.

Replacement Considerations

Check for direct substitutes with identical 30 dB attenuation, 50 Ohm impedance, and 6 GHz bandwidth. Ensure connector compatibility and power handling ratings match or exceed the original specifications. Consult manufacturer cross-reference guides for verified equivalent part numbers.
