PE7205-6

Overview

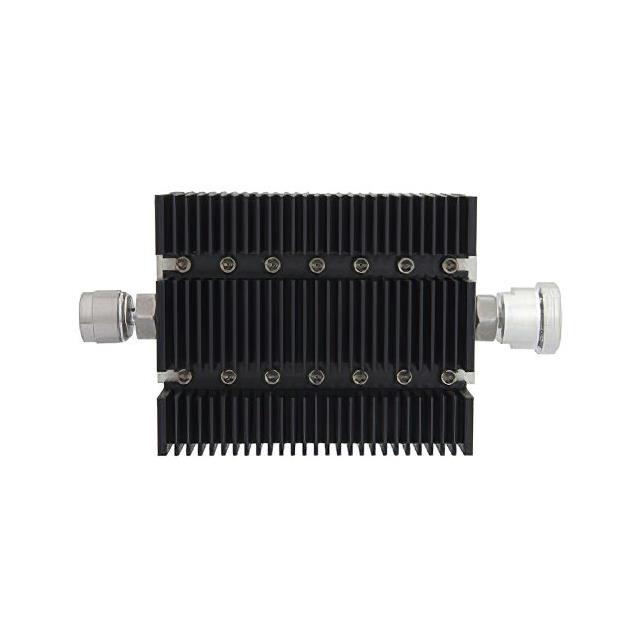

The Pasternack PE7205-6 is a fixed RF attenuator module designed for high-power applications. It provides a nominal attenuation of 6 dB with an operating frequency range from 0 Hz to 6 GHz. The component features a 50 Ohm impedance and is rated for a maximum power handling capacity of 100 Watts. This module is engineered for stability and precision in radio frequency signal processing environments.

Feature Summary

• Provides precise 6 dB signal attenuation across a wide frequency spectrum
• Engineered for high-power handling up to 100 Watts
• Maintains consistent 50 Ohm system impedance
• Operates effectively from DC through 6 GHz

Applications

• RF signal level control in communication systems
• Test and measurement equipment calibration
• High-power amplifier output stage protection
• Signal distribution network balancing

Procurement Notes

Verify the specific datasheet version for detailed mechanical dimensions and thermal management requirements. Confirm that the installation environment supports the 100W power rating without exceeding thermal limits. Ensure connector compatibility matches the system interface specifications before integration.

Selection Notes

Select this model when a fixed 6 dB reduction is required at frequencies up to 6 GHz. The 100W power rating makes it suitable for high-energy RF paths where standard surface-mount attenuators would fail. Verify that the module form factor fits the available chassis or panel space constraints.

Part Context

This component belongs to Pasternack's line of fixed RF attenuator modules. These devices are distinct from variable attenuators as they offer a single, stable attenuation value. The module format allows for robust integration into larger RF assemblies requiring durable, high-power signal conditioning.
