PE7205-60

Overview

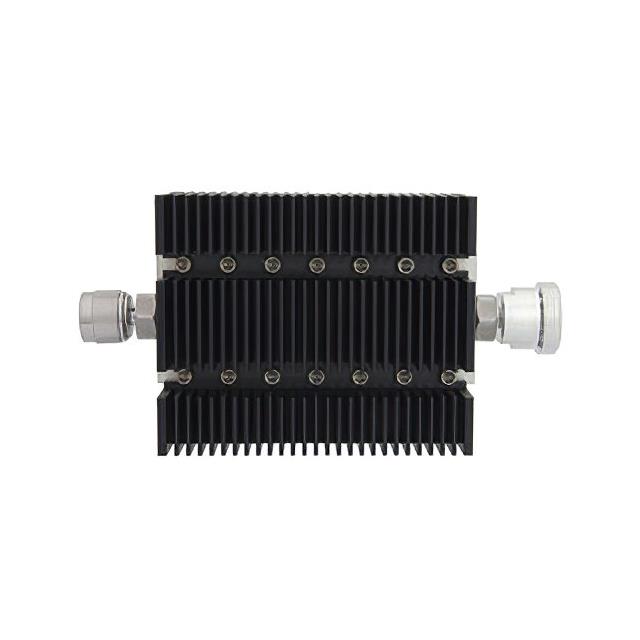

The Pasternack PE7205-60 is a fixed RF attenuator module designed for high-power applications. It provides a precise attenuation value of 60 dB across a frequency range of 0 Hz to 6 GHz. The component features N male and 7/16 DIN female connectors, ensuring compatibility with standard microwave test setups. Rated for 100 Watts at the stated attenuation level, it utilizes robust construction suitable for demanding environments. The unit operates within a temperature range of -40°C to +85°C, maintaining stability under thermal stress.

Feature Summary

• High power handling capability rated at 100 Watts
• Wideband frequency operation from DC to 6 GHz
• Fixed 60 dB attenuation precision
• Mixed connector interface combining N male and 7/16 DIN female

Applications

• RF and microwave test measurement systems
• Signal level reduction in high-power transmission lines
• Equipment protection in receiver input stages
• Calibration reference sources

Procurement Notes

Verify the specific connector gender and interface type against system requirements before ordering. Confirm that the 100 Watt power rating aligns with peak signal levels rather than continuous average power if applicable. Ensure the operating frequency does not exceed 6 GHz to maintain specified attenuation accuracy. Check environmental specifications for extreme temperature deployment scenarios.

Selection Notes

Select this model when a fixed 60 dB loss is required between DC and 6 GHz. Choose based on the need for mixed connector types to bridge N-type and 7/16 DIN interfaces without additional adapters. Consider the 100 Watt rating for high-power signal paths where lower-rated components would fail. Evaluate physical size constraints as module form factors vary.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators. These modules are engineered for stable performance in microwave frequencies. The product series offers various attenuation values and connector combinations. This specific part addresses needs for significant signal reduction in high-power test environments.

Replacement Considerations

Direct substitutes must match the 60 dB attenuation, 6 GHz bandwidth, and 100 Watt power rating. Connector compatibility requires an N male input and 7/16 DIN female output. Verify impedance matching at 50 Ohms. Cross-reference manufacturer datasheets for identical electrical specifications.
