PE7206-20

Overview

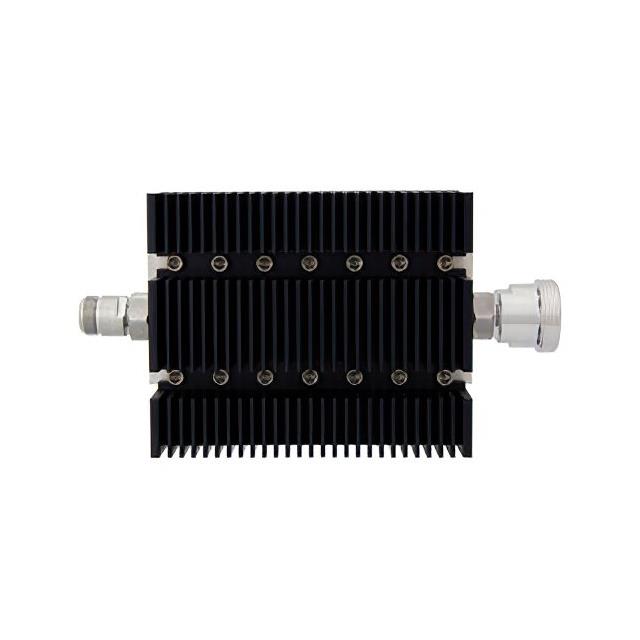

The Pasternack PE7206-20 is a fixed RF attenuator module designed for high-power applications. It provides an attenuation value of 20 dB across a frequency range from 0 Hz to 6 GHz. The component features a 50 Ohm impedance and utilizes a coaxial interface. It is constructed with a resistive PI attenuator pad design, ensuring stable performance in inline configurations.

Feature Summary

• Fixed 20 dB attenuation capability
• High power handling rated at 100W
• Coaxial 50 Ohm impedance design
• Resistive PI attenuator pad topology

Applications

• RF signal level reduction in transmission lines
• Impedance matching in microwave circuits
• Signal conditioning for test and measurement equipment

Procurement Notes

Verify the specific datasheet version for mechanical dimensions and connector type compatibility. Confirm that the operating environment remains within the specified temperature range to maintain the 100W power rating. Ensure the installation torque meets manufacturer specifications to prevent signal integrity issues or physical damage to the coaxial interface during assembly.

Selection Notes

Select this model when a fixed 20 dB loss is required up to 6 GHz. The 100W power rating distinguishes it from lower-power variants suitable for standard communication links. Consider the PI pad design for its inherent isolation characteristics compared to other topologies. Verify that the 50 Ohm system impedance matches the surrounding circuitry to minimize reflections.

Part Context

This component belongs to the Pasternack family of fixed RF attenuators. These modules are engineered for reliability in demanding RF environments. The PE series typically offers broad bandwidth coverage and robust construction for industrial and commercial applications requiring precise signal attenuation without active components.

FAQ

What is the maximum power handling capacity of the PE7206-20?

The PE7206-20 is rated for a maximum power handling of 100W.

Does the PE7206-20 support frequencies above 6 GHz?

No, the specified frequency range for this component is 0 Hz to 6 GHz.
