PE7206-3

Overview

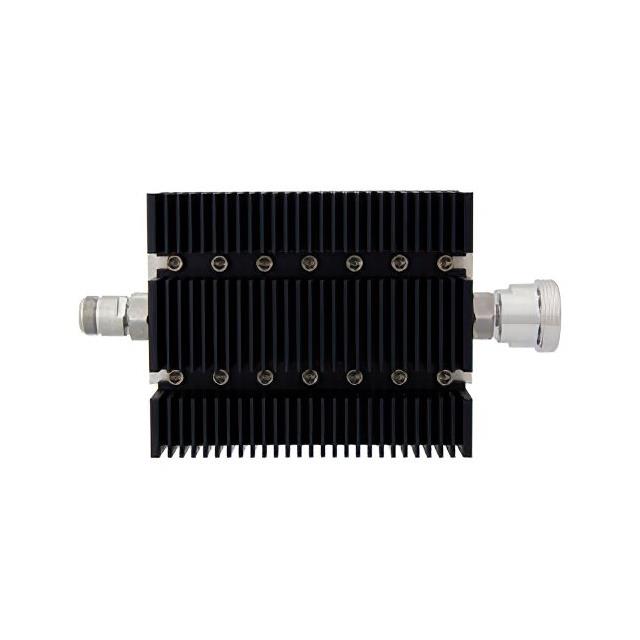

The Pasternack PE7206-3 is a fixed RF attenuator module designed for high-power applications. It provides a precise attenuation value of 3 dB across a frequency range of 0 Hz to 6 GHz. The component features N female and 7/16 DIN female connectors, ensuring compatibility with standard microwave test setups. Rated for 50 Ohms impedance, it supports up to 100 Watts of power at the stated attenuation level. This inline resistive PI pad design offers reliable signal reduction in demanding environments.

Feature Summary

• Provides a fixed 3 dB attenuation value for signal control
• Supports high power handling up to 100 Watts
• Operates effectively from DC to 6 GHz frequencies
• Features robust N and 7/16 DIN female connector interfaces

Applications

• Microwave test and measurement systems
• Signal conditioning in RF transmission lines
• High-power communication equipment testing
• Laboratory calibration setups requiring precise attenuation

Procurement Notes

Verify the specific connector gender and interface standards against your system requirements before ordering. Confirm that the 100 Watt power rating aligns with your operational peak power levels. Ensure the 6 GHz frequency limit covers your entire application bandwidth. Check for RoHS compliance if environmental regulations apply to your project.

Selection Notes

Select this model when a fixed 3 dB reduction is required for high-power signals up to 6 GHz. Consider the physical size and weight constraints of your installation space. Evaluate the need for N versus 7/16 DIN connectors based on existing infrastructure. Compare with other attenuation values if the exact 3 dB specification does not match your circuit design needs.

Part Context

This component belongs to Pasternack's series of fixed RF attenuators. These modules are engineered for stability and precision in microwave environments. The product line typically includes various attenuation values and power ratings to suit different signal processing tasks. It serves as a critical passive element for managing signal strength in complex RF networks.

Replacement Considerations

Direct substitutes include other Pasternack models with identical 3 dB attenuation and 100W power ratings. Verify connector compatibility between N and 7/16 DIN interfaces when cross-referencing. Ensure replacement units maintain the same 0 Hz to 6 GHz frequency response. Check for equivalent impedance matching at 50 Ohms.
