PE7206-40

Overview

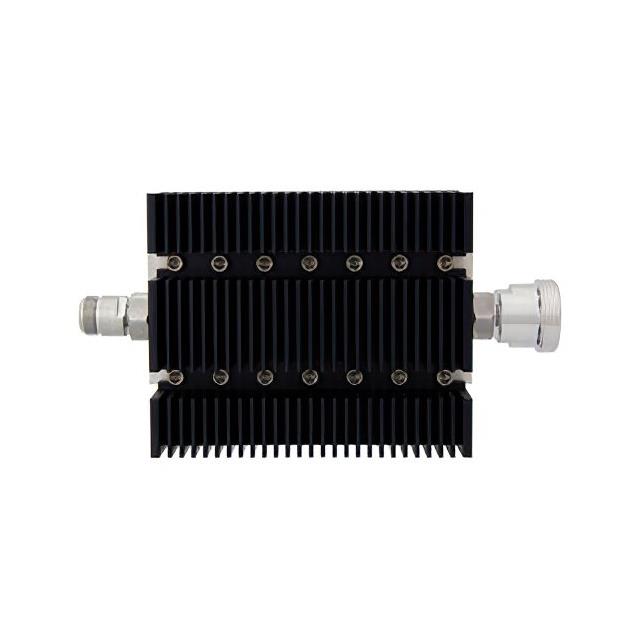

The Pasternack PE7206-40 is a fixed RF attenuator providing 40 dB attenuation. It operates within a frequency range of 0 Hz to 6 GHz and maintains a 50 Ohm impedance. The device features N female to 7/16 DIN female connectors and is rated for up to 100 Watts of power handling.

Feature Summary

• In-line resistive PI attenuator pad design
• Coaxial 50 Ohm impedance matching
• Directional configuration

Applications

• RF signal level reduction in high-power systems
• Test and measurement setups requiring precise attenuation
• Microwave circuit protection

Procurement Notes

Verify the specific connector types (N female to 7/16 DIN female) and power rating (100W) against system requirements. Confirm the frequency range (DC to 6 GHz) matches application needs. Ensure compatibility with existing coaxial infrastructure before procurement.

Selection Notes

Select this component when a fixed 40 dB attenuation is required at high power levels up to 100W. Consider the specific connector interface combination of N female and 7/16 DIN female for integration. Verify that the 6 GHz upper frequency limit suits the operational bandwidth.

Part Context

This model belongs to Pasternack's line of RF attenuators, designed for passive signal control. It utilizes a resistive PI topology to achieve stable attenuation characteristics across its specified frequency range while handling significant power loads.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
