PE7206-60

Overview

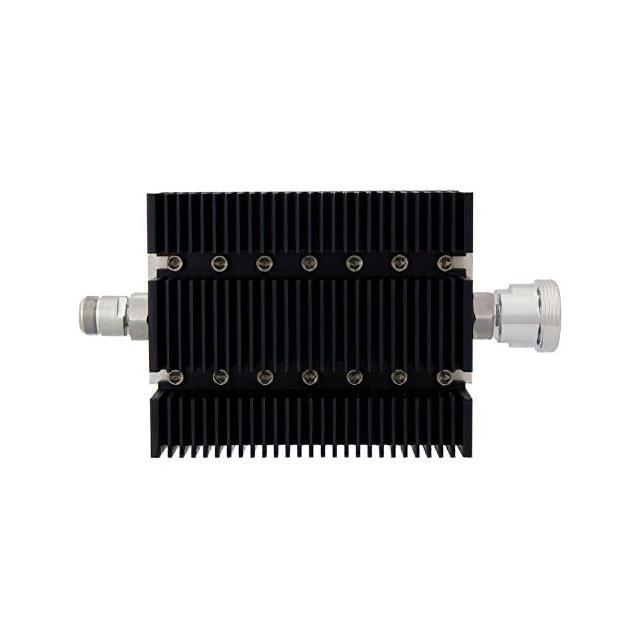

The Pasternack PE7206-60 is a fixed RF attenuator providing 60dB attenuation. It operates within a frequency range of 0 Hz to 6 GHz and supports an impedance of 50 Ohms. The device handles a power rating of 100 Watts. It features N Female connectors on one end and 7/16 DIN Female connectors on the other, designed for high-power applications requiring precise signal reduction.

Feature Summary

• Provides fixed 60dB attenuation for signal level control
• Supports high power handling up to 100 Watts
• Operates across a broad frequency spectrum from DC to 6 GHz
• Features robust N Female to 7/16 DIN Female interface configuration

Applications

• High-power RF test and measurement setups
• Signal conditioning in microwave communication systems
• Attenuation requirements in broadcast infrastructure

Procurement Notes

Verify the specific connector gender and mating compatibility with existing cabling before purchase. Confirm that the 100W power rating aligns with your system's peak power demands. Ensure the 7/16 DIN female interface matches your equipment ports. Check for any environmental ratings if outdoor or harsh conditions are involved.

Selection Notes

Choose this model when a fixed 60dB reduction is required at high power levels. The 7/16 DIN connector offers superior power handling compared to standard N-type interfaces. Consider the 0-6 GHz bandwidth to ensure it covers all operational frequencies. Verify physical space constraints as these units may have larger form factors due to heat dissipation needs.

Part Context

This component belongs to Pasternack's line of fixed attenuators designed for demanding RF environments. The PE7206 series utilizes 7/16 DIN connectors to manage higher power loads than typical N-type attenuators. These devices are engineered for stability and precision in professional test and industrial applications.

Replacement Considerations

Direct substitutes include other Pasternack models with identical 60dB attenuation and 7/16 DIN female interfaces. Ensure replacement parts maintain the same 100W power rating and 50 Ohm impedance. Cross-check frequency response specifications to guarantee performance continuity in critical circuits.
