PE7207-10

Overview

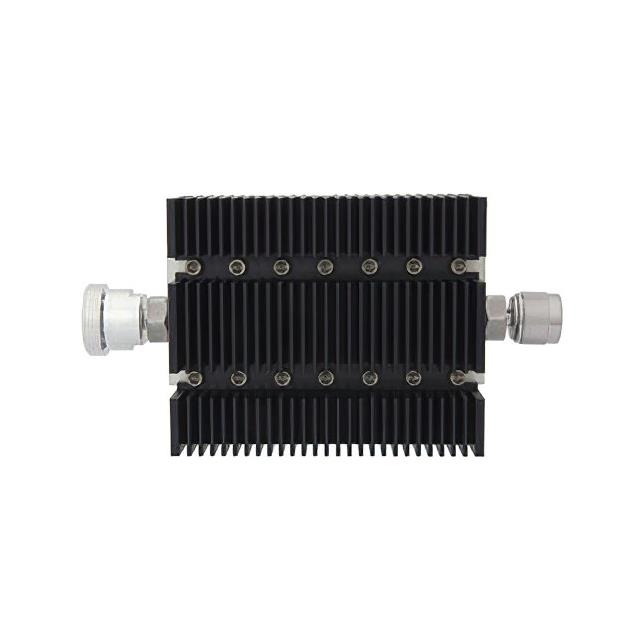

The Pasternack PE7207-10 is a fixed RF attenuator module providing 10 dB attenuation. It operates from DC to 6 GHz with a 50 Ohm impedance. The device handles 100 Watts average power and 2,000 Watts peak power. Connectors are 7/16 DIN Female and N Male. The body is black anodized aluminum heatsink. Operating temperature range is -55 to +125 degrees C.

Feature Summary

• Directional fixed attenuation design
• High power handling capability up to 100 Watts average
• Integrated heatsink body for thermal management
• Wide frequency operation up to 6 GHz

Applications

• RF signal level control in test and measurement systems
• Power reduction in microwave communication links
• Impedance matching between 7/16 DIN and N connector interfaces
• Attenuation stages in high-power amplifier chains

Procurement Notes

Verify the specific connector configuration matches the required interface, as this model uses 7/16 DIN Female to N Male. Confirm that the 100 Watt average power rating aligns with system thermal requirements. Check datasheet for VSWR and attenuation accuracy specifications relevant to precision applications. Ensure operating temperature limits suit the deployment environment.

Selection Notes

Select this component when precise 10 dB attenuation is needed at frequencies up to 6 GHz. Consider the directional nature of the attenuator for proper signal flow direction. Evaluate the physical size and mounting options provided by the heatsink body. Compare against other values in the series if different attenuation levels are required.

Part Context

This part belongs to Pasternack's line of 100W Attenuators. The series offers various attenuation values including 3, 6, 10, 20, 30, 40, and 60 dB. Multiple connector combinations are available across 7/16 DIN, N, SMA, and TNC types. These components are designed for robust performance in demanding RF environments.

Replacement Considerations

PE7207-20 provides 20 dB attenuation with identical connectors and power ratings. PE7207-30 offers 30 dB attenuation. PE7211-10 provides 10 dB attenuation but reverses the connector orientation to N Male to 7/16 DIN Female.
