PE7207-20

Overview

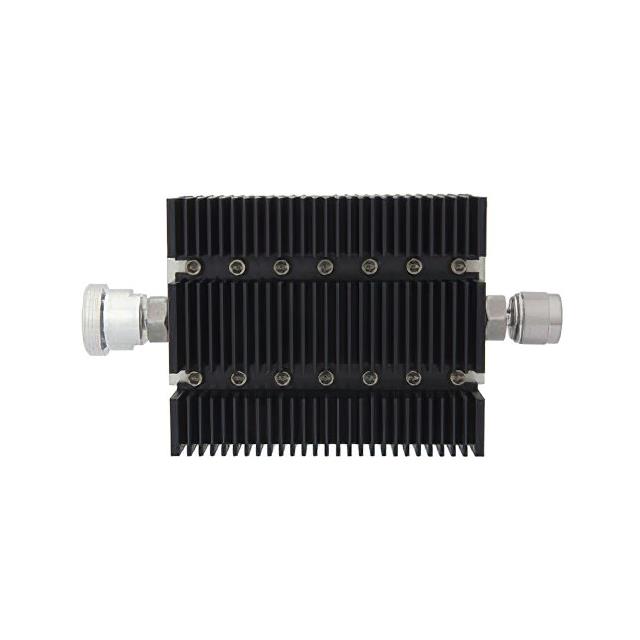

The Pasternack PE7207-20 is a 20 dB fixed directional attenuator designed for RF applications up to 6 GHz. It features a 7/16 DIN female connector on one side and an N male connector on the other, enabling seamless integration between different series. The unit utilizes a black anodized aluminum heatsink body to manage thermal loads effectively. It supports an average power handling of 100 Watts and a peak power of 2,000 Watts. The device operates within a temperature range of -55°C to +125°C and maintains a standard 50 Ohm impedance throughout its frequency spectrum.

Feature Summary

• Directional attenuation design with mixed connector interface
• Robust black anodized aluminum heatsink construction
• High power handling capability for demanding RF environments

Applications

• RF signal level reduction in test and measurement setups
• Impedance matching between 7/16 DIN and Type N systems
• Signal conditioning in wireless communication infrastructure

Procurement Notes

Verify that the specific order matches the PE7207-20 designation to ensure the correct 20 dB attenuation value. Confirm the connector genders are 7/16 DIN Female and N Male as specified. Ensure the application environment stays within the rated 100W average power limit and the -55 to +125°C temperature range to maintain performance integrity.

Selection Notes

Select this model when a precise 20 dB reduction is required between dissimilar connector types. The 7/16 DIN to N configuration addresses compatibility gaps in mixed-system installations. Consider the high power rating if the signal path involves significant energy levels. The directional nature ensures proper signal flow directionality for accurate measurements.

Part Context

This component belongs to Pasternack's line of 100W attenuators, which operate from DC to 6 GHz. The product family includes various attenuation values such as 3, 6, 10, 20, 30, 40, and 60 dB. Connectors are manufactured using passivated stainless steel or silver-plated brass depending on the type, ensuring durability and consistent electrical performance across the frequency range.

Replacement Considerations

Direct substitutes include other 20 dB fixed attenuators with identical 7/16 DIN Female to N Male configurations. Models like the PE7207-40 share the same physical interface but differ in attenuation value. Verify that any replacement maintains the 100W power rating and 6 GHz frequency limit to ensure system compatibility.
