PE7207-30

Overview

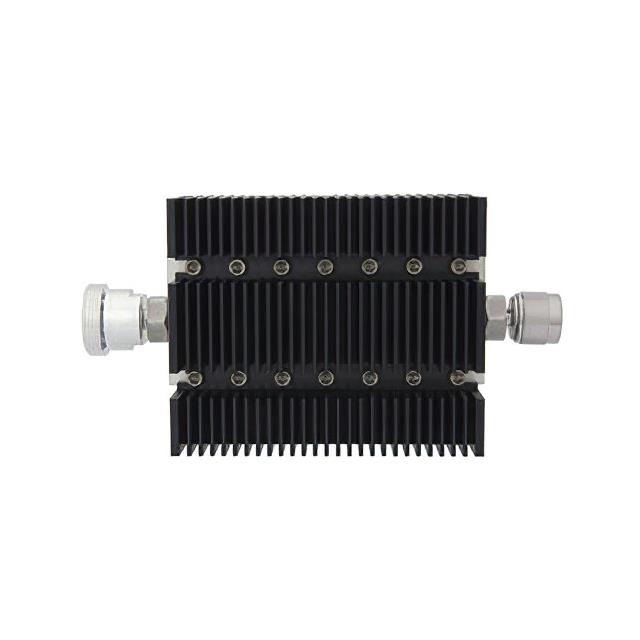

The PE7207-30 is a 30 dB fixed directional attenuator from Pasternack Enterprises, operating from DC to 6 GHz. It features a 7/16 DIN Female connector on one end and an N Male connector on the other. The unit utilizes a black anodized aluminum heatsink body for thermal management. It supports 100 watts average power and 2,000 watts peak power handling. The device maintains a 50 Ohm impedance and functions within a temperature range of -55 to +125 degrees Celsius.

Feature Summary

• Directional signal attenuation with 30 dB loss value
• Hybrid connector interface combining 7/16 DIN Female and N Male ports
• Robust black anodized aluminum heatsink construction
• High power handling capability up to 100 watts average

Applications

• RF signal level reduction in microwave test setups
• Impedance matching between different connector standards
• Protecting sensitive receiver inputs from high power sources
• Signal conditioning in broadband communication systems

Procurement Notes

Verify the specific datasheet version for precise VSWR and attenuation accuracy tolerances at defined frequency points. Confirm that the 7/16 DIN Female to N Male configuration matches the system requirements. Ensure operational limits do not exceed the 100W average or 2000W peak ratings. Check environmental specifications against the required -55 to +125 degrees C operating range.

Selection Notes

Select this component when a fixed 30 dB attenuation is required between 7/16 DIN and N connector interfaces. It is suitable for applications needing high power handling up to 100W within the 6 GHz bandwidth. Consider the physical size and heatsink design for integration into existing chassis. Verify compatibility with standard torque specifications for both connector types.

Part Context

This model belongs to Pasternack's 100W Attenuator line, which offers various attenuation values including 3, 6, 10, 20, 30, 40, and 60 dB. The series provides numerous in-series and between-series connector combinations using SMA, TNC, N, and 7/16 DIN connectors. Components are manufactured with passivated stainless steel or silver-plated brass depending on the connector type.

Replacement Considerations

Direct substitutes include other 30 dB fixed attenuators with identical 7/16 DIN Female to N Male configurations. Ensure replacement units maintain the same 100W average power rating and 6 GHz frequency range. Verify that the body material and plating provide equivalent thermal performance and corrosion resistance.
