PE7207-40

Overview

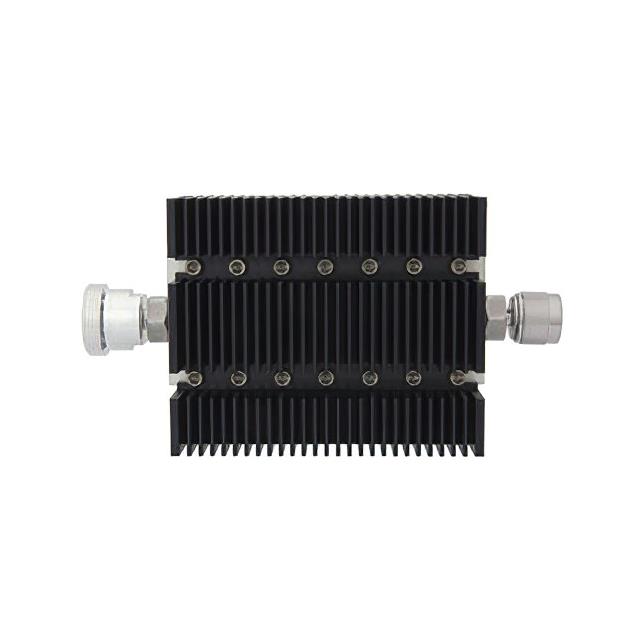

The PE7207-40 is a 40 dB fixed directional attenuator manufactured by Pasternack Enterprises. It operates from DC to 6 GHz with a 50 Ohm impedance. The component features a 7/16 DIN female connector on one side and an N male connector on the other. Constructed with black anodized aluminum heatsink body, it handles 100 Watts average power and 2,000 Watts peak power. The unit functions within a temperature range of -55 to +125 degrees Celsius.

Feature Summary

• Directional attenuation design for signal reduction
• Black anodized aluminum heatsink body construction
• Mixed connector interface between 7/16 DIN and Type N

Applications

• RF signal level adjustment in microwave systems
• Test and measurement equipment calibration
• Signal path isolation in communication networks

Procurement Notes

Verify the specific connector genders and mating compatibility before integration. Confirm that the operating frequency does not exceed 6 GHz and that thermal management aligns with the 100W average power rating. Ensure environmental conditions remain within the specified -55 to +125 degrees Celsius range for reliable performance.

Selection Notes

Select this model when a fixed 40 dB attenuation value is required at frequencies up to 6 GHz. The mixed connector configuration suits applications needing transition between 7/16 DIN and N-type interfaces. Consider the high power handling capability for robust RF environments requiring significant signal reduction without distortion.

Part Context

This component belongs to Pasternack's line of 100W attenuators, which offer various connector combinations including SMA, TNC, N, and 7/16 DIN. These units are designed for operation from DC to 6 GHz and provide multiple attenuation values such as 3, 6, 10, 20, 30, 40, and 60 dB. The series supports diverse in-series and between-series connector pairings.

FAQ

What is the maximum input power rating?

The PE7207-40 is rated for 100 Watts average power and 2,000 Watts peak power.

Does the part number indicate a change in function?

No, the suffix indicates the specific attenuation value and connector combination within the standard product line.
