PE7207-60

Overview

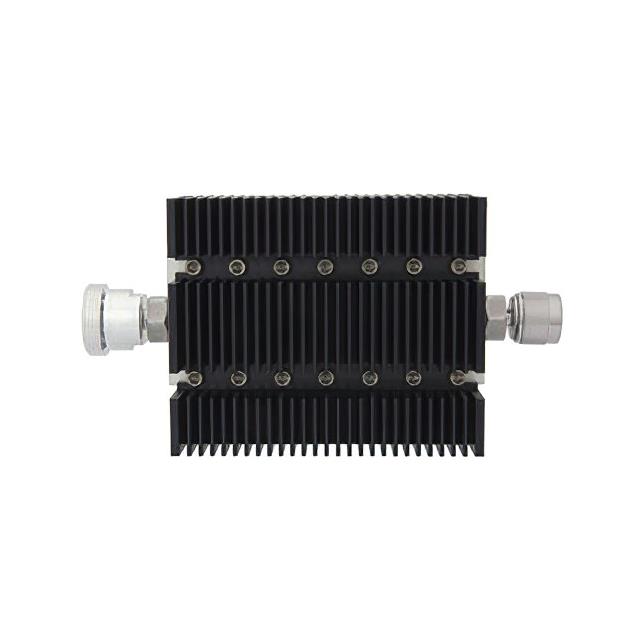

The Pasternack PE7207-60 is a fixed directional RF attenuator providing 60 dB attenuation. It operates from DC to 6 GHz with a nominal impedance of 50 Ohms. The unit features a 7/16 DIN female connector on one port and an N male connector on the other. Constructed with a black anodized aluminum heatsink body, it supports an average power handling capability of 100 Watts and a peak power rating of 2,000 Watts. The device functions within a temperature range of -55 to +125 degrees Celsius.

Feature Summary

• Directional attenuation design for signal reduction
• Robust black anodized aluminum heatsink body construction
• High power handling capacity up to 100 Watts average
• Wide frequency operation extending to 6 GHz

Applications

• RF signal level adjustment in high-power transmission lines
• Test and measurement setups requiring significant signal reduction
• Interfacing between 7/16 DIN and N-type connector systems
• Power amplifier output protection and monitoring

Procurement Notes

Verify that the specific application environment remains within the stated -55 to +125 degrees Celsius operating range. Confirm that the required attenuation value of 60 dB aligns with system design needs, as this model provides a fixed value. Ensure that the 7/16 DIN female to N male configuration matches the existing cable infrastructure. Check that input power levels do not exceed the 100 Watt average or 2,000 Watt peak ratings to prevent component damage.

Selection Notes

Select this model when a fixed 60 dB reduction is necessary at frequencies up to 6 GHz. Choose this part if the system requires conversion between 7/16 DIN and N-type connectors while maintaining 50 Ohm impedance. Consider this option for applications demanding high power handling capabilities exceeding standard attenuator limits. Verify compatibility with the black anodized aluminum heatsink design for thermal management requirements.

Part Context

This component belongs to the Pasternack line of 100W attenuators, which offer various attenuation values including 3, 6, 10, 20, 30, 40, and 60 dB. The series utilizes passivated stainless steel for SMA, TNC, and N connectors, and silver-plated brass for 7/16 DIN connectors. These units are designed for robust performance in demanding RF environments.

Replacement Considerations

Pasternack PE7207-40 offers similar construction but provides 40 dB attenuation instead of 60 dB.
