PE7208-10

Overview

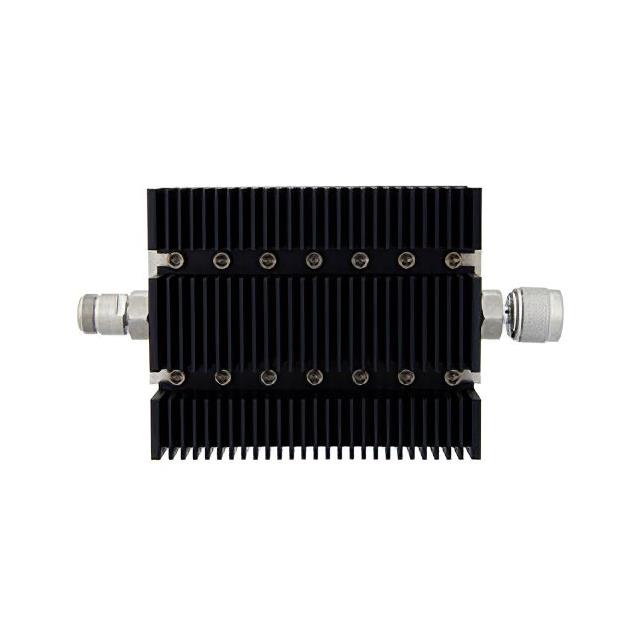

The Pasternack PE7208-10 is a fixed RF coaxial attenuator designed for high-power applications. It provides a nominal attenuation value of 10 dB with a frequency range extending up to 6 GHz. The component features N-type connectors, specifically an N female input and an N male output. It is constructed with an aluminum body finished in black anodized coating for durability and thermal management. The device is rated to handle up to 100 Watts of power at the stated attenuation level, making it suitable for demanding microwave environments.

Feature Summary

• Fixed 10 dB attenuation performance within a 6 GHz frequency bandwidth
• High power handling capability rated at 100 Watts
• N Female to N Male connector configuration for reliable interconnects
• Durable aluminum construction with black anodized finish

Applications

• RF signal testing and measurement setups
• Microwave communication systems requiring precise signal reduction
• Laboratory equipment calibration and verification
• High-power transmitter line monitoring

Procurement Notes

Verify the specific connector gender orientation (N Female to N Male) matches your system requirements before purchase. Confirm that the 100 Watt power rating aligns with your operational peak power levels to prevent damage. Ensure the 6 GHz frequency limit covers your entire application spectrum. Check for any specific environmental ratings if operating outside standard conditions.

Selection Notes

Choose this model when a fixed 10 dB reduction is required in high-power RF chains. The N-type interface offers robust mechanical stability compared to smaller connectors. Consider the 100 Watt capacity for applications involving significant signal power. Compare against variable attenuators only if adjustable attenuation is necessary, as this unit provides a static loss value.

Part Context

This part belongs to the Pasternack PE7208 series of fixed attenuators. Other models in this series include PE7208-3, PE7208-20, and PE7208-60, offering different attenuation values while maintaining similar power handling and connector types. The series is designed for consistent performance across various RF frequencies up to 6 GHz.

Replacement Considerations

Direct substitutes may include other manufacturers' 10 dB N-type fixed attenuators rated for 100 Watts and 6 GHz. Ensure replacement units match the N Female to N Male configuration. Verify that physical dimensions and mounting requirements are compatible with existing test fixtures or system enclosures.
