PE7208-20

Overview

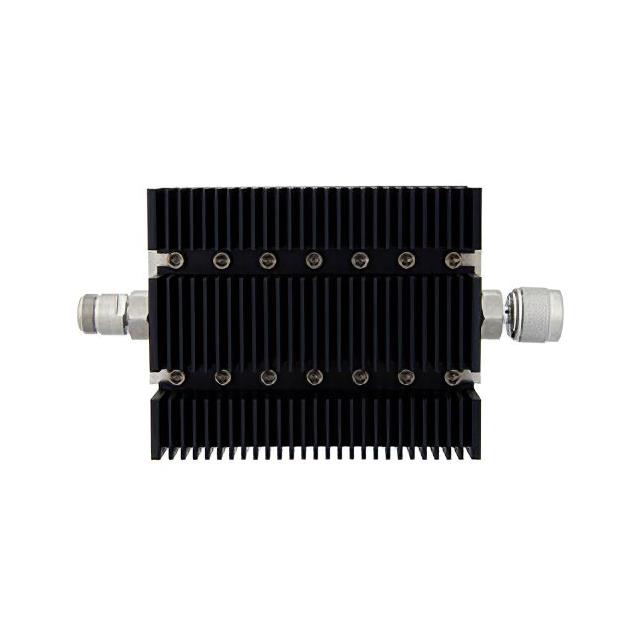

The Pasternack PE7208-20 is a fixed RF attenuator providing 20 dB attenuation. It features an N female connector on one side and an N male connector on the other, designed for in-line applications. The device operates within a frequency range of DC to 6 GHz and maintains a 50 Ohm impedance. It is rated for a maximum power handling capacity of 100 Watts at the specified attenuation value.

Feature Summary

• Directional design with mixed gender N-type connectors
• Black anodized aluminum heatsink body for thermal management
• Rated for high power handling up to 100 Watts

Applications

• RF signal level reduction in microwave systems
• Impedance matching between components with different genders
• Test and measurement setups requiring precise attenuation

Procurement Notes

Verify the specific part number PE7208-20 against official Pasternack documentation to confirm the 20 dB attenuation value and 6 GHz frequency rating. Ensure compatibility with N-type female-to-male interfaces. Check datasheets for exact power ratings and thermal specifications before integration into high-power circuits.

Selection Notes

Select this component when a fixed 20 dB attenuation is required in a 50 Ohm system operating up to 6 GHz. The mixed gender connector configuration (N female to N male) eliminates the need for additional adapters. Consider the 100 Watt power rating for high-power applications and the black anodized aluminum construction for durability and heat dissipation.

Part Context

This model belongs to the Pasternack PE7208 series of fixed attenuators. The series includes variants with different attenuation values such as 3, 10, 30, 40, and 60 dB, all sharing similar physical characteristics and performance limits. These units are designed for reliable performance in RF and microwave environments.

Replacement Considerations

Direct substitutes include other Pasternack PE7208 series models if attenuation values differ but interface requirements remain the same. Cross-brand replacements must match the N female-to-male interface, 50 Ohm impedance, 6 GHz frequency range, and 100 Watt power rating.
