PE7208-30

Overview

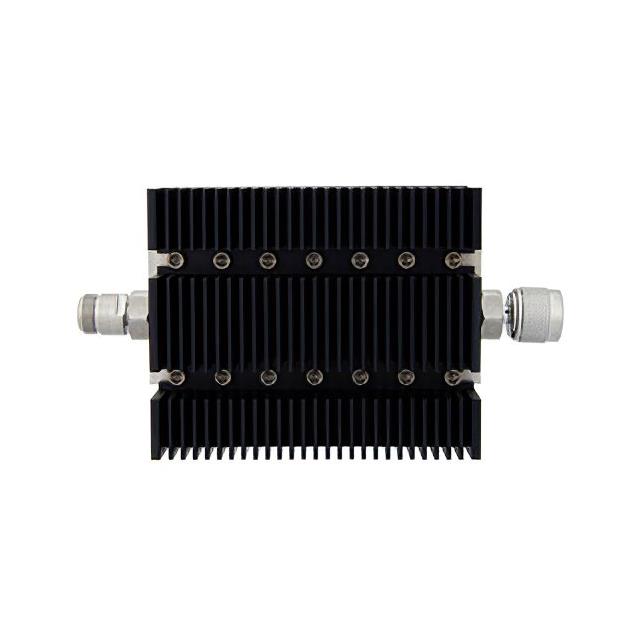

The Pasternack PE7208-30 is a fixed coaxial attenuator designed for RF applications. It provides a nominal attenuation of 30 dB with a frequency range from DC to 6 GHz. The device features Type N female connectors on both input and output sides, ensuring compatibility with standard coaxial systems. Constructed with a black anodized aluminum heatsink body, it supports a maximum power handling capacity of 100 Watts. This directional module is engineered for stable signal reduction in high-frequency environments.

Feature Summary

• Directional signal attenuation capability
• Robust black anodized aluminum heatsink construction
• Type N female-to-female connector interface

Applications

• RF signal level control in test and measurement setups
• Power reduction in communication systems up to 6 GHz
• Component protection in high-power transmission lines

Procurement Notes

Verify the specific datasheet version for precise VSWR and insertion loss tolerances. Confirm that the 100 Watt rating applies to continuous wave operation within the specified temperature range. Ensure connector gender matches system requirements, as this model uses female-to-female interfaces. Cross-reference part numbers carefully to distinguish between similar models like PE7584-30 which may have different power or frequency ratings.

Selection Notes

Select this component when a 30 dB fixed attenuation value is required for frequencies extending to 6 GHz. The 100 Watt power rating makes it suitable for higher power applications compared to lower-rated variants. The Type N interface ensures broad compatibility with existing coaxial infrastructure. Consider the directional nature of the module if signal isolation or specific port orientation is critical for the circuit design.

Part Context

This model belongs to Pasternack's line of fixed coaxial attenuators. It shares the same physical form factor and connector type as other values in the PE7208 series, such as the 3 dB, 10 dB, and 60 dB variants. All units in this series operate up to 6 GHz and utilize the same black anodized aluminum heatsink design, differing primarily in their internal attenuation resistance networks.

Replacement Considerations

Direct substitutes include other 30 dB fixed attenuators with Type N connectors and comparable power ratings. Verify that any replacement maintains the 6 GHz frequency limit and 100 Watt power handling. Models like PE7584-30 offer similar attenuation but may differ in frequency range (up to 10 GHz) and power rating (250 Watts), requiring assessment of thermal and electrical constraints.
