PE7208-60

Overview

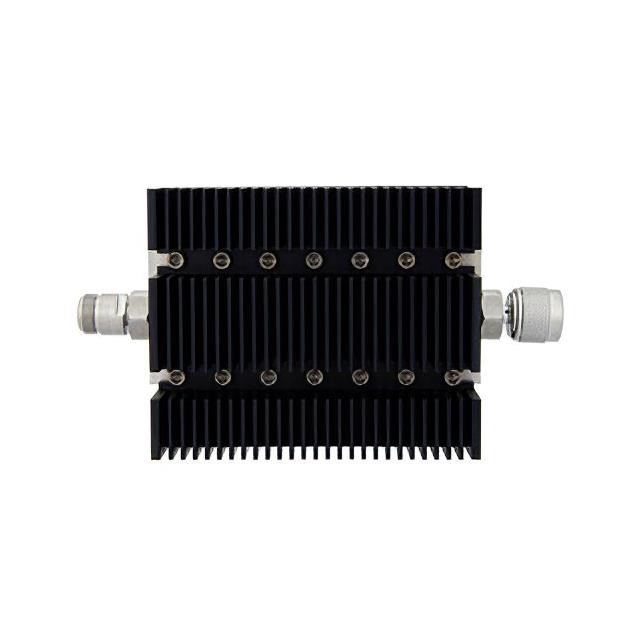

The PE7208-60 is a fixed RF attenuator manufactured by Pasternack Enterprises, Inc. It provides a nominal attenuation of 60 dB across a frequency range of 0 Hz to 6 GHz. The component features N-type connectors with female gender on one side and male gender on the other, configured as an in-line module. It is rated for a maximum power handling capacity of 100 Watts. The device operates within a standard 50 Ohm impedance system, designed for reliable signal reduction in microwave applications up to the specified frequency limit.

Feature Summary

• Provides precise 60 dB signal attenuation for RF systems
• Operates effectively from DC up to 6 GHz frequency range
• Supports high power handling up to 100 Watts
• Utilizes N-type female-to-male connector interface

Applications

• RF signal level reduction in test and measurement setups
• Attenuation stages in microwave communication systems
• Signal conditioning for high-power RF sources
• Component testing within 50 Ohm impedance environments

Procurement Notes

Verify that the specific order matches the PE7208-60 part number to ensure correct 60 dB attenuation value. Confirm connector genders are N-type female to male as specified. Check power rating requirements against the 100 Watt maximum limit. Ensure frequency needs do not exceed the 6 GHz upper operational boundary. Validate impedance compatibility with the 50 Ohm system design.

Selection Notes

Select this model when a fixed 60 dB attenuation is required between 0 Hz and 6 GHz. Choose based on the need for N-type female-to-male interconnection. Consider the 100 Watt power rating for high-power applications. Ensure the 50 Ohm impedance matches the surrounding circuitry. This unit is suitable where precise, non-adjustable signal reduction is necessary.

Part Context

This component belongs to the Pasternack PE7208 series of fixed attenuators. The series includes variants with different attenuation values such as 3, 10, 20, 30, and 40 dB. All models in this line share similar physical characteristics, including N-type connectors and a 6 GHz frequency rating. The PE7208-60 specifically denotes the highest attenuation option within this standardized product family.

Replacement Considerations

Direct substitutes include other Pasternack PE7208 series models if lower attenuation is acceptable. Cross-manufacturer replacements must match the 60 dB value, 6 GHz frequency, 100W power, and N-type female-to-male configuration. Verify impedance remains 50 Ohms. Ensure physical dimensions and connector types align with existing assembly requirements.
