PE7211-6

Overview

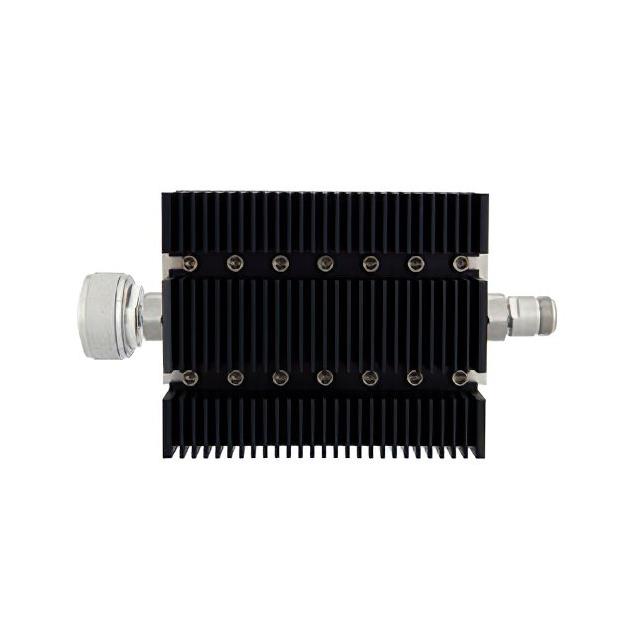

The Pasternack PE7211-6 is a 6 dB fixed attenuator designed for RF applications up to 6 GHz. It features a 7/16 DIN male connector on one side and an N female connector on the other, providing impedance matching between different interface standards. The unit is rated for 100 watts of power handling capacity. Constructed with a black anodized aluminum heatsink body, it ensures thermal stability during operation. This directional module operates within a frequency range of 0 Hz to 6 GHz at 50 Ohms.

Feature Summary

• Directional attenuation design for signal control
• Integrated black anodized aluminum heatsink body
• High power handling capability up to 100 Watts
• Interface conversion from 7/16 DIN male to N female

Applications

• RF test and measurement setups requiring signal reduction
• Telecommunications systems operating up to 6 GHz
• Signal distribution networks needing impedance transition
• Laboratory equipment calibration procedures

Procurement Notes

Verify that the specific order matches the PE7211-6 designation to ensure correct attenuation value and connector gender combination. Confirm that the application environment supports the 100 Watt power rating and 6 GHz frequency limit. Check physical dimensions against available space in the assembly. Ensure that the 7/16 DIN male and N female interfaces align with existing system cabling requirements before finalizing procurement.

Selection Notes

Choose this model when a precise 6 dB reduction is required alongside a transition from 7/16 DIN to N connectors. Consider the 100 Watt power rating for high-power transmission lines. Evaluate the directional nature if isolation or specific signal flow directionality is necessary. Compare against other values in the PE7211 series if different attenuation levels are needed while maintaining similar connector types.

Part Context

This component belongs to the Pasternack PE7211 series of fixed attenuators. Similar models include PE7211-10, PE7211-20, PE7211-40, and PE7211-60, which offer varying attenuation values such as 10 dB, 20 dB, 40 dB, and 60 dB respectively. All share the same 7/16 DIN male to N female configuration and 100 Watt power rating within the 0 Hz to 6 GHz range.

Replacement Considerations

Direct substitutes within the same series include PE7211-10, PE7211-20, PE7211-40, and PE7211-60. These parts maintain identical connector interfaces and power ratings but differ in attenuation value. Verify that the system can tolerate the alternative attenuation level without affecting signal integrity or noise floor requirements.
