PE7211-60

Overview

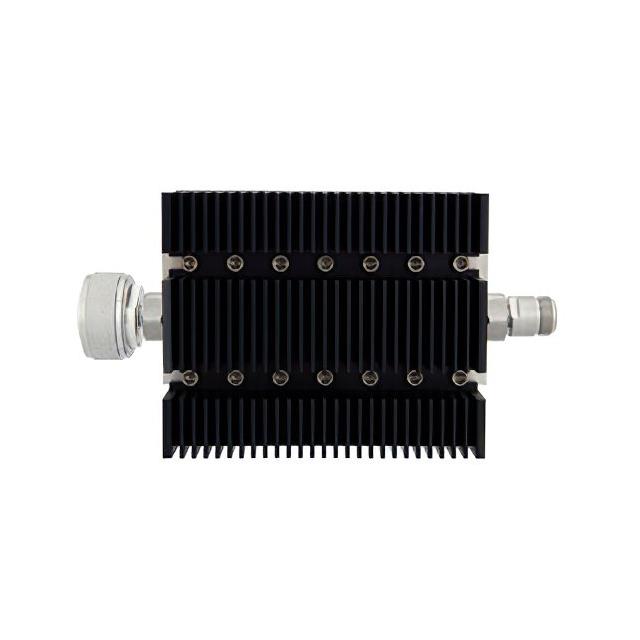

The PE7211-60 is a fixed RF attenuator manufactured by Pasternack. It provides an attenuation value of 60 dB and operates within a frequency range of 0 Hz to 6 GHz. The component utilizes a 7/16 DIN male connector on one end and an N female connector on the other. It is rated for a maximum power handling capacity of 100 Watts.

Feature Summary

• Provides precise 60 dB signal attenuation
• Supports up to 100 Watts power handling
• Operates from DC to 6 GHz

Applications

• RF signal level reduction in test setups
• Protection of sensitive receiver inputs
• Signal conditioning in communication systems

Procurement Notes

Verify the specific connector gender configuration matches the system requirements, as this model combines 7/16 DIN male with N female interfaces. Confirm that the 100 Watt power rating aligns with the operational power levels of the intended application to ensure safe and reliable performance without exceeding thermal limits.

Selection Notes

Select this component when a high-power, wideband attenuation solution is required between 7/16 DIN and N-type interfaces. Ensure the system can accommodate the physical dimensions and weight associated with 100 Watt rated components. Verify that the 6 GHz upper frequency limit meets the spectral requirements of the signals being processed.

Part Context

This part belongs to Pasternack's line of 100 Watt attenuators designed for robust RF applications. It serves as a passive component for managing signal strength in high-power environments. The design focuses on maintaining performance stability across the specified frequency range while handling significant power loads.
