PE7212-3

Overview

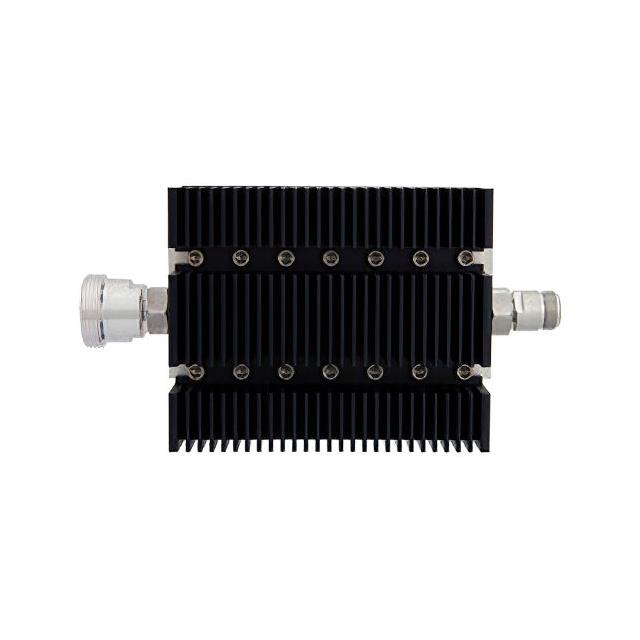

The PE7212-3 is a fixed RF attenuator module manufactured by Pasternack. It provides an attenuation value of 3 dB with a nominal impedance of 50 Ohms. The device operates within a frequency range of 0 Hz to 6 GHz and is rated for a maximum power handling capacity of 100 Watts. The component features a 7/16 DIN Female input connector and an N Female output connector, designed for directional signal reduction in microwave applications.

Feature Summary

• Provides precise 3 dB signal attenuation for RF systems
• Supports high power handling up to 100 Watts
• Operates effectively across a broad frequency spectrum from DC to 6 GHz
• Features robust 7/16 DIN Female to N Female interface configuration

Applications

• RF signal level adjustment in test and measurement equipment
• Power reduction in microwave transmission lines
• Signal conditioning in communication systems operating up to 6 GHz

Procurement Notes

Verify the specific connector gender and interface standards against system requirements before integration. Confirm that the 100 Watt power rating aligns with peak operational loads. Ensure the 7/16 DIN Female to N Female configuration matches existing cabling infrastructure. Check for RoHS compliance documentation if required by project specifications.

Selection Notes

Select this model when a fixed 3 dB attenuation is required at frequencies up to 6 GHz. Consider the 100 Watt power rating for high-power applications. The mixed connector interface (7/16 DIN to N-Type) necessitates appropriate adapters or cable assemblies. Evaluate thermal management needs given the power handling capabilities.

Part Context

This component belongs to Pasternack's line of fixed RF attenuators. These modules are engineered for stability and precision in passive microwave circuits. The series typically offers various attenuation values and power ratings to suit diverse RF engineering needs.

Replacement Considerations

Direct substitutes include other 3 dB fixed attenuators with compatible power ratings and frequency ranges. Verify connector compatibility, as the 7/16 DIN to N Female interface may require specific adapters for replacement parts with different port configurations.
