PE7212-30

Overview

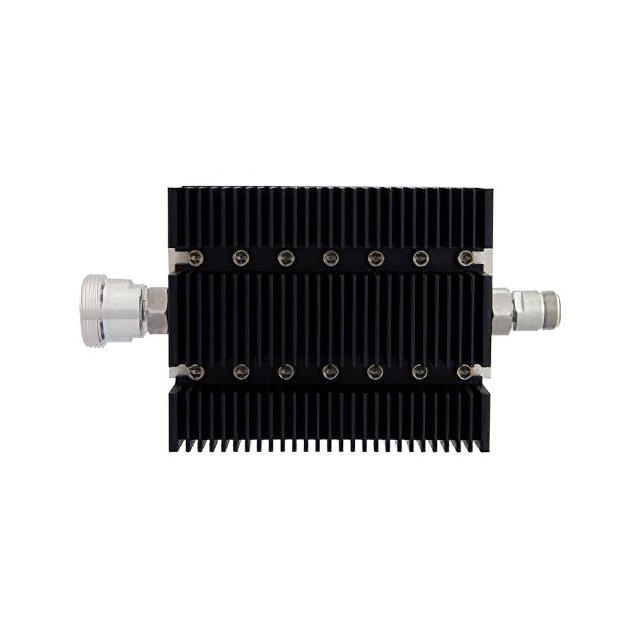

The PE7212-30 is a fixed attenuator manufactured by Pasternack Enterprises, designed for high-power RF applications. It provides a nominal attenuation of 30 dB with a frequency range extending up to 6 GHz. The device features a 7/16 DIN female connector on one port and an N female connector on the other, facilitating interface compatibility in mixed-connector systems. Constructed with a directional black anodized aluminum heatsink body, it supports a maximum power rating of 100 Watts within its operational bandwidth. The unit maintains a characteristic impedance of 50 ohms, ensuring signal integrity across the specified frequency spectrum while dissipating thermal energy effectively.

Feature Summary

• Directional design utilizing a black anodized aluminum heatsink body for enhanced thermal management
• Mixed connector configuration combining 7/16 DIN female and N female interfaces
• High power handling capability rated at 100 Watts for robust operation

Applications

• High-power RF test and measurement setups requiring precise signal reduction
• Telecommunications infrastructure connecting 7/16 DIN and N-type equipment
• Radar systems operating within the 6 GHz frequency limit

Procurement Notes

Verify the specific datasheet version for the PE7212-30 to confirm connector gender and orientation details. Ensure that the 7/16 DIN female to N female interface matches the system requirements. Check the power rating specifications against peak operational loads to prevent thermal damage. Confirm compliance with RoHS directives if required by the procurement policy. Validate the frequency range limits for the intended application environment.

Selection Notes

Select this component when a 30 dB attenuation value is required in systems bridging 7/16 DIN and N-type connectors. Consider the 100 Watt power rating for high-energy signal paths where standard attenuators may overheat. The directional nature of the attenuator makes it suitable for applications requiring isolation or specific signal flow directionality. Ensure the 6 GHz upper frequency limit aligns with the system's operational bandwidth needs.

Part Context

This part belongs to Pasternack's line of fixed attenuators, specifically those designed for high-power applications. The PE7212 series utilizes durable aluminum construction with anodized finishes for corrosion resistance and heat dissipation. These components are engineered for reliability in demanding RF environments, offering stable attenuation values across their specified frequency ranges. The model number suffix indicates the attenuation level, distinguishing it from other variants in the series.

Replacement Considerations

Public confirmed substitute part numbers: PE7212-40 (40 dB variant).

FAQ

What is the connector configuration of the PE7212-30?

The PE7212-30 features a 7/16 DIN female connector on one end and an N female connector on the other.

Is the PE7212-30 a directional or bidirectional attenuator?

The PE7212-30 is a directional attenuator, as indicated by its product description and construction.
