PE7212-60

Overview

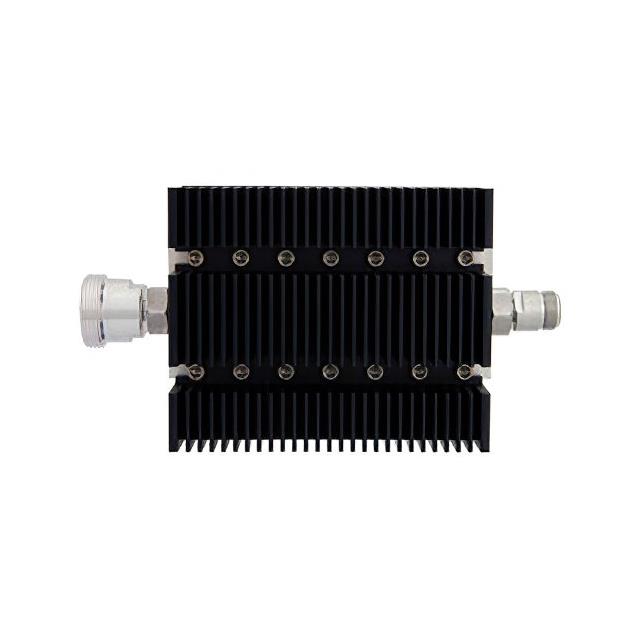

The Pasternack PE7212-60 is a fixed RF attenuator module designed for high-power applications. It provides a precise attenuation value of 60 dB across a frequency range of 0 Hz to 6 GHz. The component features a 50 Ohm impedance system and is rated to handle up to 100 Watts of power at the stated attenuation level. This module utilizes a 7/16 DIN female connector on one end and an N female connector on the other, facilitating integration into microwave test setups and signal processing chains requiring significant signal reduction.

Feature Summary

• Provides a fixed 60 dB attenuation value for signal level control
• Operates effectively from DC (0 Hz) up to 6 GHz frequency range
• Rated for high power handling capability of 100 Watts
• Constructed as a robust module with mixed connector interfaces

Applications

• Microwave test and measurement systems
• Signal processing chains requiring fixed signal reduction
• RF equipment input/output protection via attenuation
• Laboratory calibration and testing environments

Procurement Notes

Verify the specific connector configuration matches your system requirements, as this model combines a 7/16 DIN female interface with an N female interface. Confirm that the 100 Watt power rating aligns with your operational peak power levels to ensure safe operation within the 0 Hz to 6 GHz bandwidth. Check datasheet specifications for thermal management needs associated with high-power dissipation in module form factors.

Selection Notes

Select this component when a fixed 60 dB loss is required between DC and 6 GHz. Ensure compatibility with the mixed connector types (7/16 DIN and N) present in your design. Consider the 100 Watt power rating for high-power applications. Verify impedance matching requirements are met by the 50 Ohm specification. Evaluate if the module form factor fits within your available space constraints compared to smaller coaxial versions.

Part Context

This part belongs to Pasternack's line of fixed RF attenuators, specifically designed for microwave frequencies. It serves as a passive component used to reduce signal amplitude without distortion. The PE7212-60 distinguishes itself through its high power handling and wideband DC-to-6 GHz performance, making it suitable for demanding industrial and laboratory applications where stable attenuation is critical.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
