PE7213-3

Overview

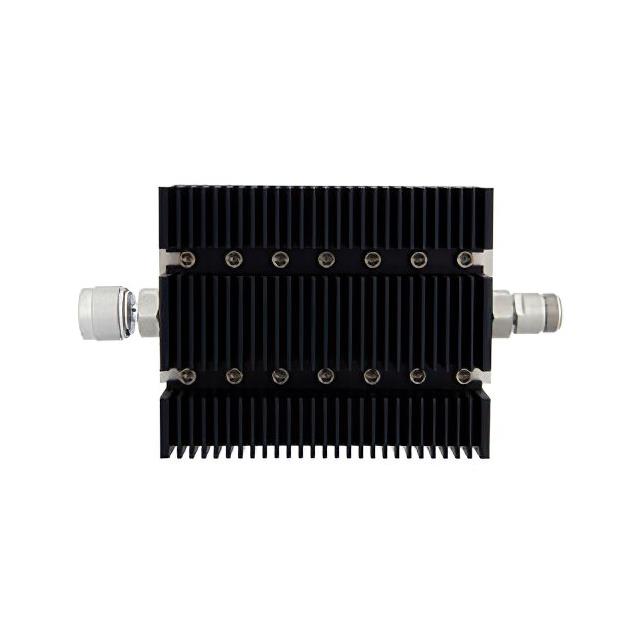

The Pasternack PE7213-3 is a 3 dB fixed attenuator designed for radio frequency applications. It features an N male connector on one side and an N female connector on the other, providing directional attenuation capabilities. The component is rated to handle up to 100 watts of power and operates effectively within a frequency range extending up to 6 GHz. Constructed with a black anodized aluminum heatsink body, it ensures thermal stability during operation.

Feature Summary

• Provides precise 3 dB signal attenuation in a directional configuration
• Connects via N male to N female interface for standard integration
• Rated for high power handling up to 100 watts
• Operates across a frequency spectrum from 0 Hz to 6 GHz
• Utilizes a black anodized aluminum heatsink body for thermal management

Applications

• RF signal level control in communication systems
• Test and measurement setups requiring known attenuation
• Power distribution networks needing signal reduction
• Antenna feed line matching and isolation

Procurement Notes

Verify the specific part number PE7213-3 against official Pasternack documentation to confirm connector gender orientation and power ratings. Ensure compatibility with system frequency requirements up to 6 GHz. Check for RoHS compliance status if environmental regulations apply. Confirm that the 100-watt rating aligns with peak operational loads rather than continuous average power without proper cooling considerations.

Selection Notes

Select this attenuator when a fixed 3 dB reduction is required between N-type connectors. Consider the 100-watt power rating for high-power RF environments. The 6 GHz bandwidth suits microwave applications. Verify physical space constraints due to the heatsink body design. Ensure impedance matching requirements are met for the specific application environment.

Part Context

This component belongs to Pasternack's series of fixed attenuators. It serves as a passive RF module used to reduce signal strength by a defined amount. The N-type interface makes it suitable for general-purpose RF testing and industrial applications where robust connectivity and moderate power handling are necessary.

Replacement Considerations

Compatible substitutes include other 3 dB N-type fixed attenuators from Pasternack such as PE7213-30 or similar models within the same series. Ensure replacement parts match the 100-watt power rating and 6 GHz frequency limit. Verify connector gender and body style compatibility before substitution.
