PE7213-30

Overview

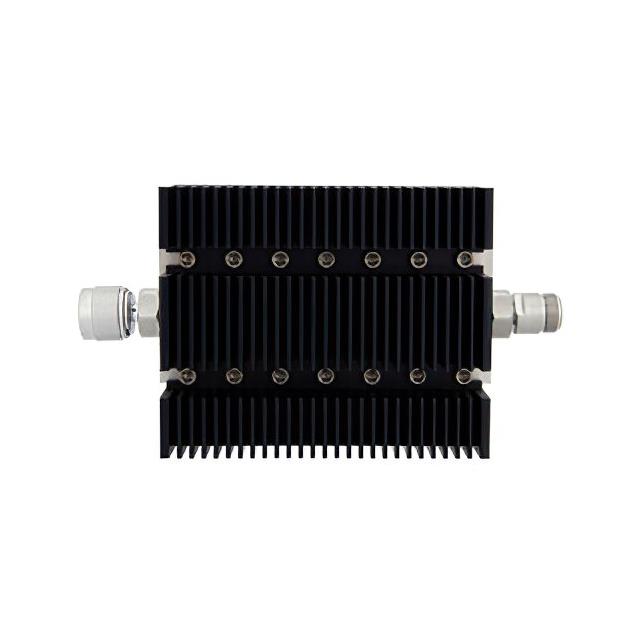

The Pasternack PE7213-30 is a fixed coaxial attenuator featuring Type N male and female connectors. It provides a nominal attenuation of 30 dB with a 50 Ohm impedance. The device operates within a frequency range of DC to 6 GHz. It is rated for a maximum power handling capacity of 100 Watts. The unit utilizes a black anodized aluminum heatsink body for thermal management.

Feature Summary

• Fixed attenuation value of 30 dB
• Type N male to female connector interface
• Black anodized aluminum heatsink construction
• Rated for 100 Watts power handling

Applications

• RF signal level reduction in test setups
• Impedance matching in 50 Ohm systems
• Protection of sensitive receiver inputs
• Production system calibration

Procurement Notes

Verify the specific datasheet version for the PE7213-30 to confirm current manufacturing status and exact electrical tolerances. Ensure compatibility with existing Type N connector standards in your assembly. Cross-reference official Pasternack documentation for any updates on material specifications or environmental ratings prior to final integration.

Selection Notes

Select this component when a precise 30 dB reduction is required within the 6 GHz bandwidth. The 100 Watt rating suits high-power applications compared to lower-wattage variants. Consider the physical size of the heatsink body for space-constrained enclosures. Verify that Type N connectors align with the system's mating hardware requirements.

Part Context

This model belongs to Pasternack's line of fixed RF attenuators designed for coaxial applications. It shares the same connector style and general construction principles as other models in the series, differing primarily in attenuation value and frequency limits. The product serves as a passive component for signal conditioning.

Replacement Considerations

Direct substitutes include other 30 dB fixed attenuators from Pasternack with compatible connector types, such as the PE7213-30 variant if available in different finishes. Ensure replacement parts maintain the 50 Ohm impedance and 6 GHz frequency limit. Verify power handling capabilities match or exceed the original 100 Watt specification.
