PE7213-40

Overview

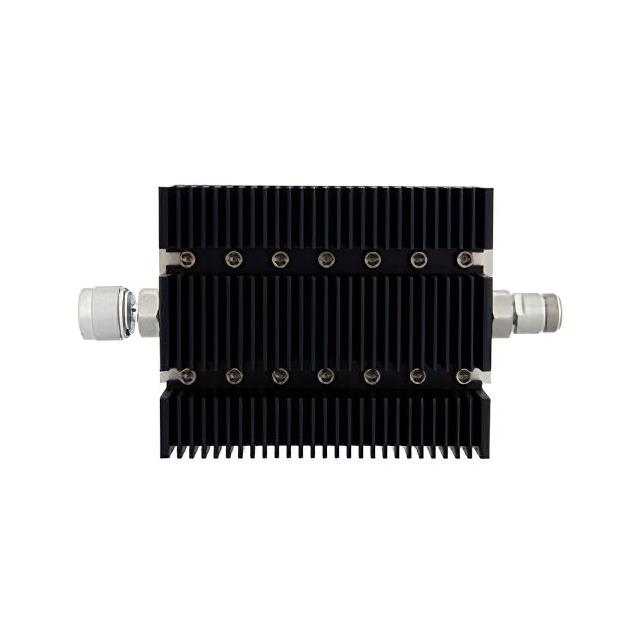

The Pasternack PE7213-40 is a fixed RF attenuator designed for in-line applications within coaxial systems. It provides a precise attenuation value of 40 dB across a frequency range extending from 0 Hz to 6 GHz. The component utilizes N-Type connectors, featuring a male interface on one side and a female interface on the other, ensuring compatibility with standard N-Type cabling infrastructure. Constructed with a black anodized aluminum heatsink body, it supports high power handling capabilities rated up to 100 Watts. This directional attenuator is engineered for stability and thermal management in demanding radio frequency environments.

Feature Summary

• Fixed 40 dB attenuation performance
• N-Type male to female connector configuration
• Black anodized aluminum heatsink body construction
• Directional signal flow design

Applications

• RF test and measurement setups
• Signal level reduction in communication systems
• High-power coaxial circuit protection
• Laboratory equipment interconnects

Procurement Notes

Verify that the required attenuation value matches the specific application needs, as this unit provides a fixed 40 dB reduction. Confirm that the operating frequency does not exceed the 6 GHz upper limit specified for this model. Ensure the system power levels remain within the 100 Watt rating to prevent damage. Check connector gender requirements to ensure compatibility with existing N-Type male and female interfaces in the signal chain.

Selection Notes

Select this model when a fixed 40 dB reduction is required at frequencies up to 6 GHz. Consider the 100 Watt power rating for high-power applications where thermal dissipation is critical. Choose the N-Type interface if it aligns with the existing system connector standards. Evaluate the directional nature of the component against bidirectional requirements, as this unit is optimized for specific signal flow directions.

Part Context

This component belongs to Pasternack's line of 100W attenuators, which operate from DC to 6 GHz. It is part of a series including variants such as PE7213-6, PE7213-20, PE7213-30, and PE7213-50, offering different attenuation values while maintaining similar connector types and power handling capabilities. These units are designed for robust performance in industrial and laboratory settings.

Replacement Considerations

Compatible substitutes include other 40 dB fixed attenuators with N-Type connectors and similar power ratings. Verify that alternative models support the same 6 GHz frequency range and 100 Watt power handling. Ensure physical dimensions and mounting requirements match the existing installation space.
