PE7213-6

Overview

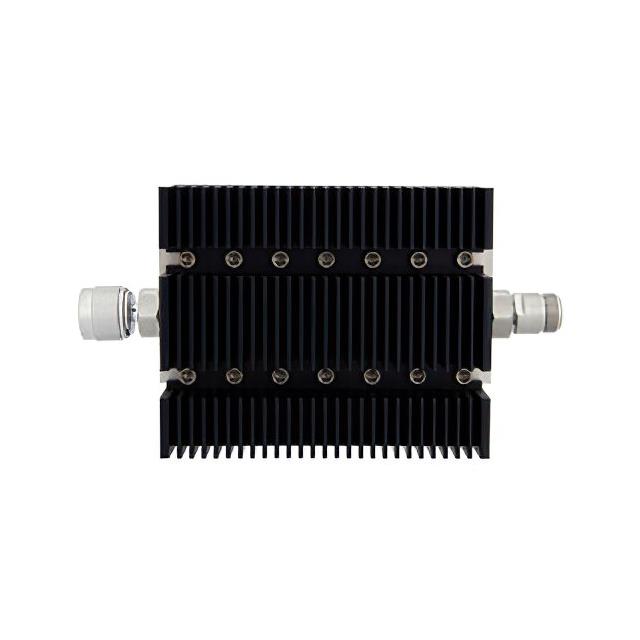

The Pasternack PE7213-6 is a fixed RF attenuator module designed for inline applications. It provides an attenuation value of 6 dB across a frequency range from 0 Hz to 6 GHz. The component operates with a 50 Ohm impedance and supports a maximum power handling capacity of 100 Watts. It utilizes N-Type connectors for interface compatibility.

Feature Summary

• Provides precise 6 dB signal attenuation
• Operates within a 0 Hz to 6 GHz frequency range
• Supports high power handling up to 100 Watts
• Features 50 Ohm impedance matching

Applications

• RF signal level control in test and measurement setups
• Power reduction in high-power transmission lines
• Protection of sensitive receiver inputs
• Signal conditioning in communication systems

Procurement Notes

Verify the specific connector gender and flange type required for your installation, as N-Type interfaces vary. Confirm that the 100W power rating aligns with your system's peak and average power levels. Ensure the 6GHz bandwidth covers your operational frequency spectrum. Check datasheet specifications for thermal management requirements during continuous operation.

Selection Notes

Select this model when a fixed 6dB reduction is necessary at frequencies up to 6GHz. The 100W power rating makes it suitable for high-power environments where standard attenuators might fail. Ensure the N-Type interface matches your existing cabling infrastructure. Consider thermal dissipation capabilities if operating near maximum power limits continuously.

Part Context

This component belongs to Pasternack's line of RF attenuators, specifically designed for inline module applications. It serves as a passive device to reduce signal amplitude without introducing significant distortion. The N-Type interface ensures robust connectivity in industrial and commercial RF environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
