PE7213-60

Overview

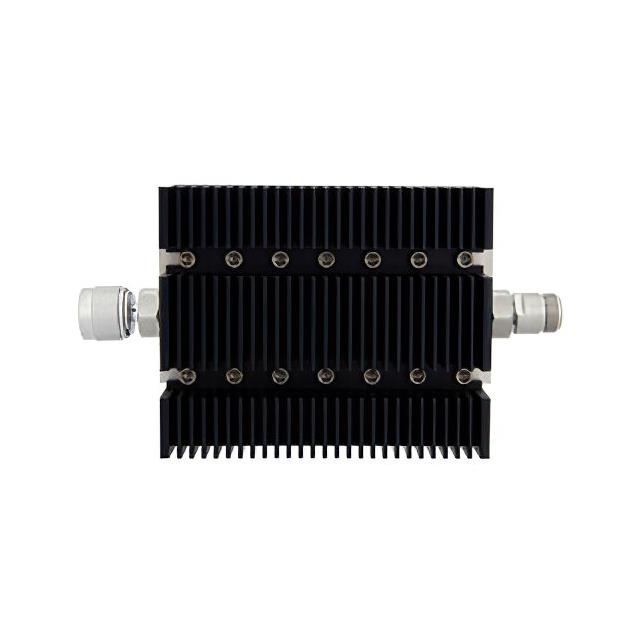

The PE7213-60 is a fixed RF attenuator manufactured by Pasternack. It provides a nominal attenuation of 60 dB with an operating frequency range from 0 Hz to 6 GHz. The component features N-Type connectors, specifically male on one side and female on the other, facilitating in-line module integration. It is rated for a maximum power handling capacity of 100 Watts. The housing utilizes black anodized aluminum heatsink construction to ensure thermal stability during operation.

Feature Summary

• Provides precise 60 dB signal reduction within the specified frequency band
• Utilizes durable N-Type connector interface for reliable in-line connection
• Constructed with black anodized aluminum heatsink for thermal management
• Supports high power applications up to 100 Watts

Applications

• RF signal level adjustment in test and measurement setups
• Attenuation in wireless communication systems
• Signal conditioning in radar equipment
• Integration into RF circuit boards requiring fixed loss

Procurement Notes

Verify that the required attenuation value matches the specific application needs, as this model is fixed at 60 dB. Confirm compatibility with N-Type connectors on both ends of the system chain. Ensure the operational environment does not exceed the 100 Watt power rating or the 6 GHz frequency limit. Check for any specific mounting requirements associated with the heatsink design before finalizing procurement.

Selection Notes

Select this component when a high-value fixed attenuation is required between 0 Hz and 6 GHz. Consider the N-Type interface if it aligns with existing system hardware. Evaluate the 100 Watt power handling against peak signal levels. Compare against lower attenuation models like PE7213-10 if less signal reduction is sufficient for the target circuit configuration.

Part Context

This part belongs to Pasternack's series of directional fixed attenuators designed for coaxial applications. It shares similar thermal and structural characteristics with other models in the family, such as those using TNC connectors (e.g., PE7241-60), but differs in connector type and gender configuration. The product line focuses on providing stable attenuation across microwave frequencies.

Replacement Considerations

Direct substitutes include other 60 dB fixed attenuators with matching N-Type interfaces. Models such as PE7213-60 variants from other manufacturers may be considered if they meet the 100W and 6GHz specifications. Ensure connector gender and impedance match exactly to avoid adapter usage.
