PE7214-3

Overview

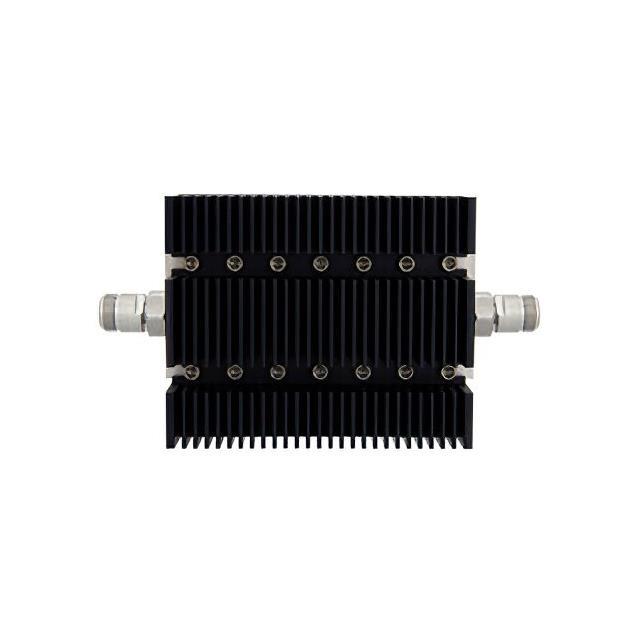

The Pasternack PE7214-3 is a 3 dB fixed attenuator designed for directional applications. It features N female connectors on both sides and operates within a frequency range of 0 Hz to 6 GHz. The component is rated for up to 100 Watts at the stated attenuation value. The housing is black, indicating a standard industrial finish for this microwave attenuator series.

Feature Summary

• Provides precise 3 dB signal attenuation for circuit protection or level adjustment
• Directional design supports specific signal flow requirements
• Robust construction with N female connectors for reliable interfacing

Applications

• Microwave system signal level control
• Test and measurement equipment calibration
• RF circuit protection and impedance matching

Procurement Notes

Verify the exact frequency range and power rating against the official datasheet before integration. Confirm connector gender and interface compatibility with existing system components. Ensure environmental conditions meet the specified operational limits for long-term reliability.

Selection Notes

Select this model when a fixed 3 dB reduction is required in N-type systems up to 6 GHz. Consider the 100 Watt power handling capability for high-power applications. Evaluate directional requirements to ensure signal flow aligns with the component's design specifications.

Part Context

This part belongs to Pasternack's line of fixed attenuators, specifically those utilizing N-type connectors. These components are engineered for stability and precision in RF environments. The PE7214-3 variant offers a standard attenuation value suitable for general-purpose microwave applications.

Replacement Considerations

Check for compatible N-type fixed attenuators with identical 3 dB attenuation and 6 GHz bandwidth. Verify power handling ratings match or exceed 100 Watts. Ensure physical dimensions and mounting styles are compatible with the existing assembly.
