PE7214-30

Overview

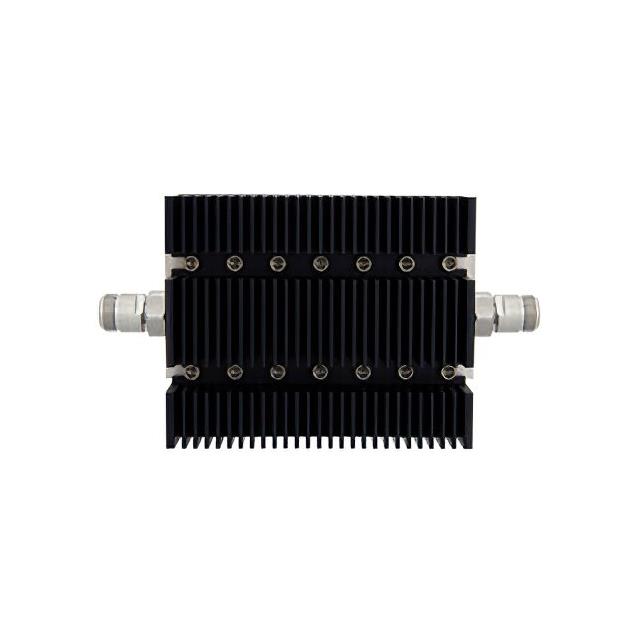

The Pasternack PE7214-30 is a fixed RF attenuator designed for in-line applications. It provides a nominal attenuation of 30 dB with a frequency range extending from 0 Hz to 6 GHz. The component features N-type female connectors on both input and output sides, ensuring compatibility with standard coaxial systems. It operates at a characteristic impedance of 50 Ohms and is rated for a maximum power handling capacity of 100 Watts within the specified frequency band.

Feature Summary

• Fixed resistive PI attenuator pad design
• Directional black housing construction
• Coaxial 50 Ohm impedance matching

Applications

• RF signal level reduction in test and measurement setups
• Protecting sensitive receiver inputs from high power signals
• Impedance matching in microwave communication circuits

Procurement Notes

Verify the specific connector gender configuration matches the application requirements, as the datasheet indicates N Female to N Female orientation. Confirm that the operating environment remains within the -55 to +125 degrees C temperature range to ensure reliable performance. Ensure the applied RF power does not exceed the 100 Watt rating at the target frequency to prevent thermal damage or performance degradation during continuous operation.

Selection Notes

Select this model when a precise 30 dB attenuation value is required up to 6 GHz. Consider the 100 Watt power rating for high-power transmission lines. Verify that N-type female connectors are compatible with existing system interfaces. Compare against other values in the PE7214 series if different attenuation levels such as 10 dB or 20 dB better suit the circuit design needs.

Part Context

This component belongs to the Pasternack PE7214 series of fixed attenuators. The series offers various attenuation values including 3, 6, 10, 20, 30, 40, and 60 dB. All units in this family share similar directional black housing designs and operate within the same 0 Hz to 6 GHz frequency range with consistent 50 Ohm impedance characteristics.

Replacement Considerations

Direct substitutes include other PE7214 series models with different attenuation values if the exact 30 dB specification is flexible. Generic N-type female fixed attenuators meeting the 30 dB, 6 GHz, and 100 Watt specifications may also serve as functional replacements provided connector compatibility and power ratings align.
