PE7214-40

Overview

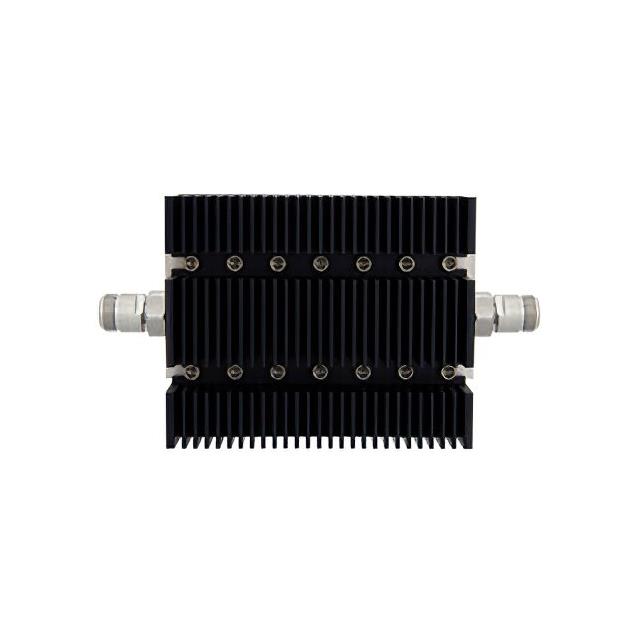

The PE7214-40 is a fixed 40 dB attenuator manufactured by Pasternack. It operates within a frequency range of DC to 6 GHz and features N-type female connectors on both ends. The device utilizes an in-line, resistive PI attenuator pad design with a coaxial 50 Ohm impedance. It is rated for a maximum power handling capacity of 100 Watts at the stated attenuation value.

Feature Summary

• Fixed 40 dB attenuation level
• DC to 6 GHz operational bandwidth
• N-type female connector interface
• Resistive PI attenuator pad design

Applications

• RF signal level reduction
• Test and measurement setups
• Microwave circuit protection

Procurement Notes

Verify the specific datasheet version for accurate electrical tolerances and mechanical dimensions. Confirm that the N-type female connectors match your system requirements. Ensure the 100W power rating aligns with your application's peak power levels before finalizing procurement.

Selection Notes

Select this component when a precise 40 dB attenuation is required within the 6 GHz frequency range. The N-type female-to-female configuration suits standard coaxial systems. Consider the 100W power rating for high-power applications requiring stable signal reduction without distortion.

Part Context

This part belongs to Pasternack's line of fixed attenuators. It shares the directional black anodized aluminum housing design found in similar models like the PE7214-3 and PE7214-10. The series offers various attenuation values while maintaining consistent connector types and power ratings.

Replacement Considerations

Direct substitutes include other 40 dB fixed attenuators with N-type female connectors from Pasternack or compatible manufacturers. Verify that replacement parts maintain the same DC-6 GHz frequency range and 100W power handling capability to ensure system compatibility.
