PE7214-6

Overview

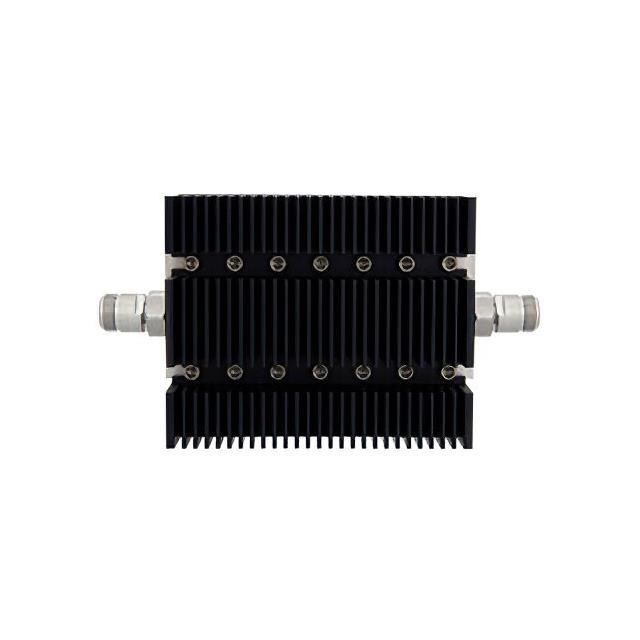

The PE7214-6 is a fixed attenuator manufactured by Pasternack Enterprises, Inc. It provides a 6 dB attenuation value and utilizes N Female connectors on both the input and output ports. The component is directional in design and is rated to handle up to 100 Watts of power. Its operational frequency range extends up to 6 GHz. This device belongs to the category of RF cable assemblies and passive components designed for signal level control in radio frequency systems.

Feature Summary

• Provides a fixed 6 dB attenuation value for signal reduction
• Features N Female connectors for secure interfacing
• Directional construction ensures proper signal flow direction
• Rated for high power handling up to 100 Watts

Applications

• Radio frequency signal level adjustment
• Test and measurement equipment interconnects
• Communication system signal conditioning

Procurement Notes

Verify the specific connector gender and orientation against your system requirements before ordering. Confirm that the 100 Watt power rating and 6 GHz frequency limit align with your application's peak power and bandwidth needs. Ensure compatibility with existing N Female mating interfaces. Check for any environmental ratings if outdoor or harsh condition usage is intended. Validate that the directional nature meets your signal path requirements.

Selection Notes

Select this model when a precise 6 dB reduction is required at N Female interfaces. Consider the 100 Watt power handling capability for high-power applications. Ensure the 6 GHz upper frequency limit covers your operational spectrum. Verify that the directional characteristic is necessary for your circuit topology. Compare with other attenuation values if different signal levels are needed.

Part Context

This part is a fixed attenuator within Pasternack's portfolio of RF components. It serves as a passive device to reduce signal amplitude without distortion. The N Female interface is common in industrial and commercial RF applications. The 6 dB value is a standard step for significant signal reduction. The 100 Watt rating indicates suitability for moderate to high power environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 6 dB attenuation, N Female connectors, 100 Watt power rating, and 6 GHz frequency limit. Alternative models from other manufacturers must meet these exact specifications to ensure functional equivalence.
