PE7221-10

Overview

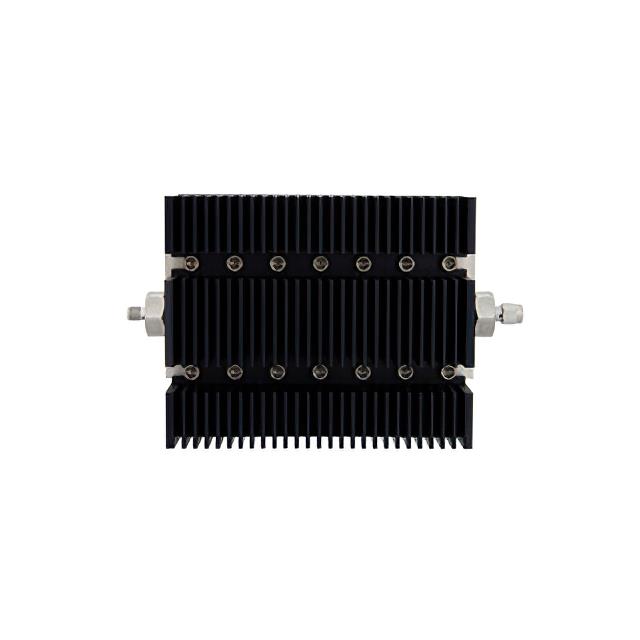

The PE7221-10 is a fixed attenuator manufactured by Pasternack Enterprises, Inc. It features SMA female to SMA male connectors and provides a nominal attenuation of 10 dB. The component is rated for up to 100 watts of power handling capacity and operates at frequencies up to 6 GHz. This device is designed for use in RF signal paths where precise signal reduction is required.

Feature Summary

• Provides fixed 10 dB attenuation
• SMA female to SMA male interface
• Rated for 100 watts power handling
• Operates up to 6 GHz frequency

Applications

• RF signal level adjustment
• Test and measurement setups
• Communication system integration
• Signal path protection

Procurement Notes

Verify the exact model number PE7221-10 against official Pasternack documentation to ensure correct specifications. Confirm connector type, power rating, and frequency range match application requirements. Check for RoHS compliance status if required. Ensure sourcing from authorized distributors to guarantee product authenticity and quality.

Selection Notes

Select this component when a fixed 10 dB attenuation is needed within the 6 GHz bandwidth. Consider the 100-watt power rating for high-power applications. Ensure SMA connectors are compatible with existing system interfaces. Evaluate thermal management needs based on continuous power dissipation.

Part Context

The PE7221-10 belongs to Pasternack's line of fixed attenuators. It is part of a series that includes various attenuation values and connector configurations. These components are commonly used in RF engineering to manage signal strength and protect sensitive equipment from excessive power levels.

Replacement Considerations

Check for equivalent models from Pasternack or other manufacturers offering 10 dB attenuation with SMA connectors. Verify compatibility in terms of power rating, frequency range, and physical dimensions. Ensure any substitute meets the same performance standards and regulatory requirements.
