PE7310-10

Overview

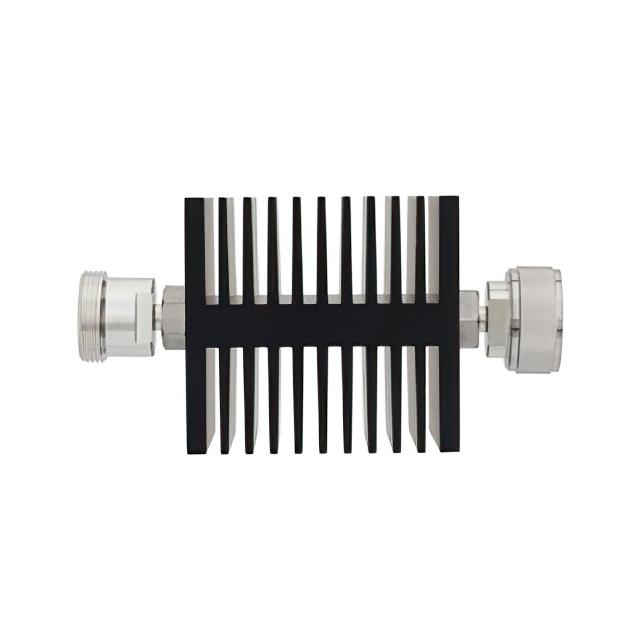

The PE7310-10 is a fixed 10 dB attenuator manufactured by Pasternack. It features 7/16 DIN female to 7/16 DIN male connectors and operates within a frequency range of 0 Hz to 7.5 GHz. The device maintains a 50 Ohm impedance and is rated for 50 Watts of power handling. It utilizes an in-line, resistive PI attenuator pad design.

Feature Summary

• Fixed 10 dB attenuation value
• In-line resistive PI attenuator pad design
• Directional construction

Applications

• RF signal level reduction
• Impedance matching in microwave circuits
• Signal conditioning up to 7.5 GHz

Procurement Notes

Verify the specific connector gender configuration (Female to Male) against system requirements. Confirm that the 50 Watt power rating and 7.5 GHz frequency limit align with operational parameters. Ensure compatibility with 7/16 DIN interface standards before integration.

Selection Notes

Select this component when a precise 10 dB loss is required in high-power RF applications. The 7/16 DIN interface supports robust connections suitable for demanding environments. Consider the directional nature of the design for proper signal flow orientation.

Part Context

This part belongs to Pasternack's line of fixed coaxial attenuators. It provides stable attenuation characteristics across its specified bandwidth. The 7/16 DIN connector type offers durability and performance advantages over smaller interfaces.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
