PE7310-20

Overview

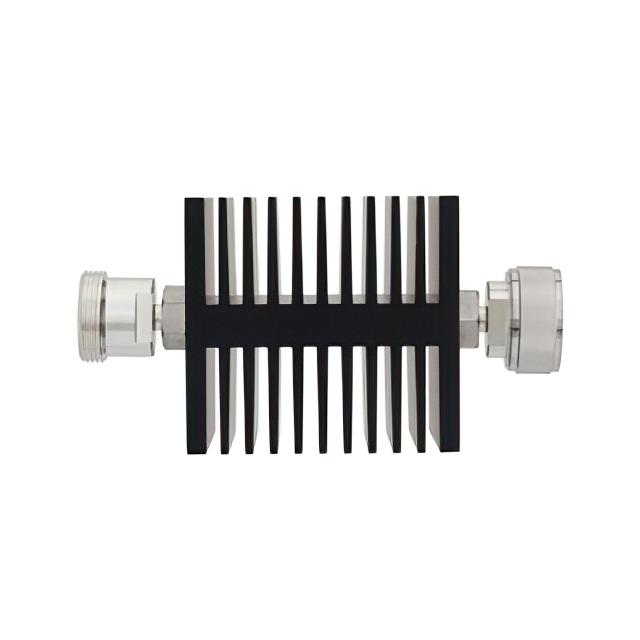

The Pasternack PE7310-20 is a fixed attenuator designed for coaxial systems. It provides a nominal attenuation of 20 dB with a power rating of 50 watts and operates up to 7.5 GHz. The device features a 7/16 DIN female-to-male interface configuration. Construction includes a black anodized aluminum heatsink body, ensuring thermal stability during high-power operation.

Feature Summary

• High power handling capability rated at 50 watts
• Broadband frequency operation extending to 7.5 GHz
• Integrated heatsink body for efficient thermal management

Applications

• High-power RF test and measurement setups
• Signal level reduction in communication systems
• Instrumentation requiring precise attenuation

Procurement Notes

Verify the specific datasheet version for exact VSWR and return loss specifications. Confirm that the 7/16 DIN connector gender matches the system requirements. Ensure the operating environment temperature aligns with the component's thermal dissipation capabilities.

Selection Notes

Select this model when 20 dB attenuation is required within a 7.5 GHz bandwidth. The 50-watt power rating suits applications demanding significant signal reduction without overheating. The 7/16 DIN interface ensures compatibility with standard high-power coaxial infrastructure.

Part Context

This component belongs to the Pasternack PE7310 series of fixed attenuators. The series offers various attenuation values while maintaining consistent 7/16 DIN interface standards. These parts are engineered for robust performance in demanding RF environments.

Replacement Considerations

Check for compatible 7/16 DIN female-to-male attenuators with similar 20 dB attenuation and 50-watt ratings. Verify frequency range compatibility up to 7.5 GHz. Ensure physical dimensions and mounting requirements match the existing assembly.
