PE7310-30

Overview

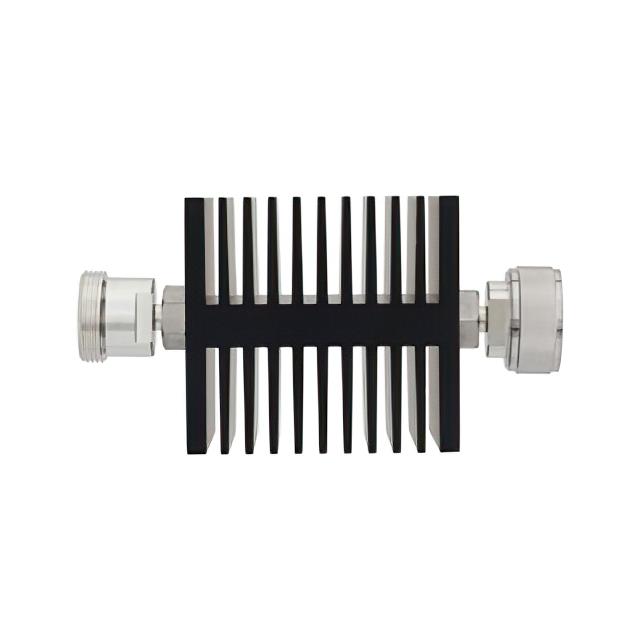

The PE7310-30 is a fixed 30 dB attenuator manufactured by Pasternack. It features 7/16 DIN female to 7/16 DIN male connectors and utilizes a resistive PI pad design within a directional black anodized aluminum heatsink body. The component operates from DC up to 7.5 GHz with a 50 Ohm impedance. It has a maximum power rating of 50 watts, a VSWR of 1.15:1, and functions between -55°C and +125°C.

Feature Summary

• Directional resistive PI pad design for signal attenuation
• Black anodized aluminum heatsink body construction
• 7/16 DIN connector interface configuration

Applications

• RF test and measurement setups requiring precise signal reduction
• Communication systems needing fixed attenuation levels
• Equipment protection via controlled signal power management

Procurement Notes

Verify the specific datasheet version for the PE7310-30 to confirm mechanical dimensions and connector gender orientation. Ensure the application environment stays within the specified temperature range of -55°C to +125°C. Confirm that the 50-watt power rating aligns with system requirements at the operating frequency of 7.5 GHz. Check RoHS compliance status if required by project specifications.

Selection Notes

Select this model when a fixed 30 dB attenuation value is required in a 7/16 DIN system. The directional design aids in isolating components during testing. Consider the 50-watt power handling capability for high-power RF applications. The wide frequency range up to 7.5 GHz supports various microwave measurements. Ensure the bulkhead or inline mounting style fits the physical constraints of the assembly.

Part Context

This component belongs to Pasternack's line of fixed coaxial attenuators designed for reliable signal control. The 7/16 DIN interface provides robust connectivity for high-power applications compared to smaller connectors. The series offers various attenuation values and connector combinations to suit different RF infrastructure needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
