PE7310-40

Overview

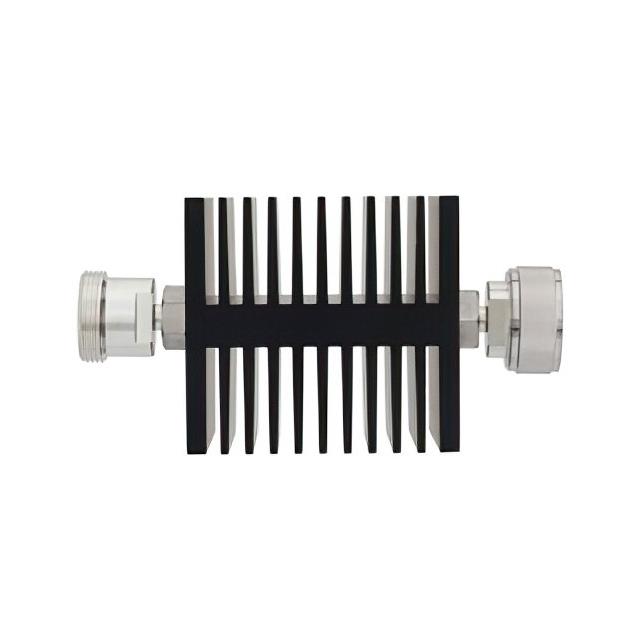

The PE7310-40 is a fixed 40 dB attenuator from Pasternack. This device utilizes an in-line, resistive PI attenuator pad design. It operates as a coaxial 50 Ohm component with a frequency range of 0 Hz to 7.5 GHz. The unit features a power rating of 50W and employs a HEX In-Line Module configuration.

Feature Summary

• Fixed attenuation value of 40 dB
• Resistive PI attenuator pad design
• Coaxial 50 Ohm impedance
• HEX In-Line Module configuration

Applications

• RF signal level reduction
• Impedance matching networks
• Test and measurement setups
• Communication system protection

Procurement Notes

Verify the specific connector gender configuration (Female to Male) against your schematic requirements. Confirm that the 50W power handling capacity meets your system's peak power demands. Ensure the 7.5 GHz upper frequency limit covers your operational bandwidth. Check for any environmental ratings if outdoor or harsh conditions are involved.

Selection Notes

Select this model when a precise 40 dB loss is required within the 0-7.5 GHz range. Consider the 50W power rating for high-power applications. The HEX module form factor suits direct inline mounting. Compare against other Pasternack attenuators if different attenuation values or connector types are needed.

Part Context

This component belongs to Pasternack's RF Attenuators category. It is designed for passive signal control in coaxial systems. The product line includes various fixed and variable attenuators. It complements Pasternack's broader portfolio of RF components and connectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs before considering alternatives.
