PE7310-6

Overview

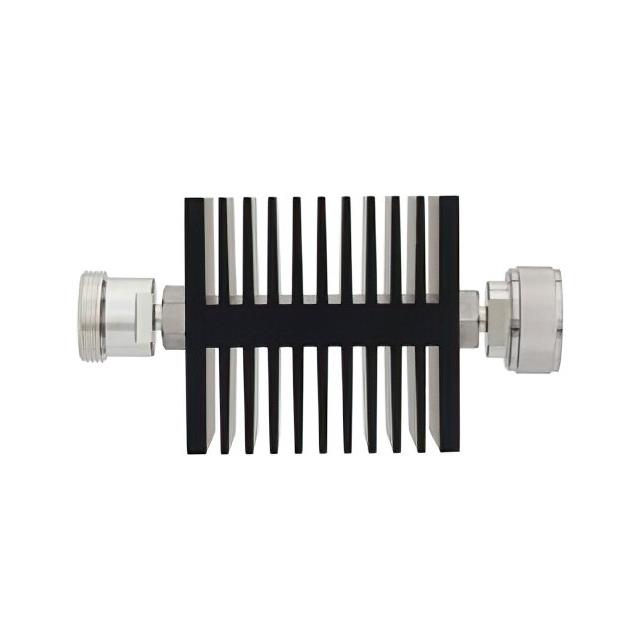

The Pasternack PE7310-6 is a fixed RF attenuator module designed for high-frequency applications. It provides a precise attenuation value of 6 dB across a frequency range from 0 Hz to 7.5 GHz. The component operates with a characteristic impedance of 50 Ohms and supports a maximum power handling capacity of 50 Watts at the stated attenuation level. It utilizes 7/16 DIN female connectors on both input and output ports, housed in a hexagonal in-line module package constructed from black anodized aluminum.

Feature Summary

• Provides stable 6 dB signal reduction within microwave frequency bands
• Features robust thermal management via anodized aluminum housing
• Ensures reliable connectivity through standardized 7/16 DIN interfaces

Applications

• RF signal path power leveling in test equipment
• Microwave communication system attenuation
• Laboratory measurement setups requiring fixed loss

Procurement Notes

Verify that the specific part number matches the required attenuation value and frequency range for your application. Confirm connector gender and interface type compatibility with existing cabling. Ensure power ratings align with system operational limits to prevent damage.

Selection Notes

Select this model when a fixed 6 dB loss is required up to 7.5 GHz. Consider the 50W power rating for high-power environments. The hex module form factor suits panel mounting or inline integration where space constraints allow.

Part Context

This component belongs to Pasternack's line of fixed attenuators. It serves as a passive RF element used to reduce signal amplitude without distortion. The design focuses on maintaining impedance matching and minimizing reflection across the specified bandwidth.

Replacement Considerations

Direct substitutes include models with identical specifications such as the PE7312-6, which shares the same attenuation, frequency, and power ratings but may differ in connector orientation or pin configuration.
