PE7311-10

Overview

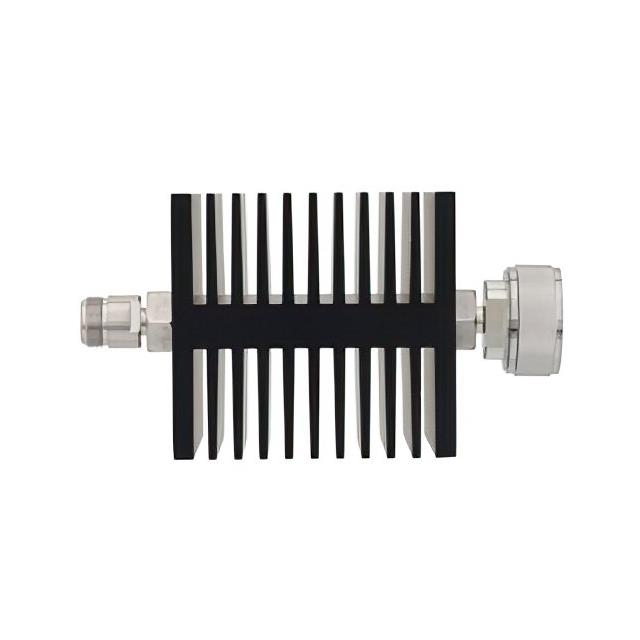

The PE7311-10 is a fixed 10 dB attenuator manufactured by Pasternack. It features an N-type female connector on one end and a 7/16 DIN male connector on the other. The device operates with a 50 Ohm impedance and provides directional attenuation up to 7.5 GHz. It is rated for 50 Watts of power at the specified attenuation value. The unit utilizes a resistive PI attenuator pad design and is housed in a directional black anodized body.

Feature Summary

• Directional black anodized housing
• Resistive PI attenuator pad design
• N-type female to 7/16 DIN male configuration

Applications

• RF signal level reduction
• Impedance matching between N-type and 7/16 DIN systems
• Microwave circuit protection

Procurement Notes

Verify the specific connector gender and interface standards against project requirements, as the model specifies N-type female to 7/16 DIN male. Confirm that the 50 Watt power rating and 7.5 GHz frequency limit align with operational parameters. Ensure compatibility with existing mounting hardware due to the directional housing design.

Selection Notes

Select this component when interfacing between N-type and 7/16 DIN connectors is required. The 10 dB attenuation value suits applications needing significant signal reduction. The 50 Watt rating supports high-power environments. The directional design aids in identifying signal flow direction within the assembly.

Part Context

This part belongs to Pasternack's line of coaxial RF attenuators. It serves as a passive component for managing signal strength in microwave systems. The combination of N-type and 7/16 DIN interfaces allows for versatile integration in various RF infrastructure setups requiring standardized connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
