PE7311-50

Overview

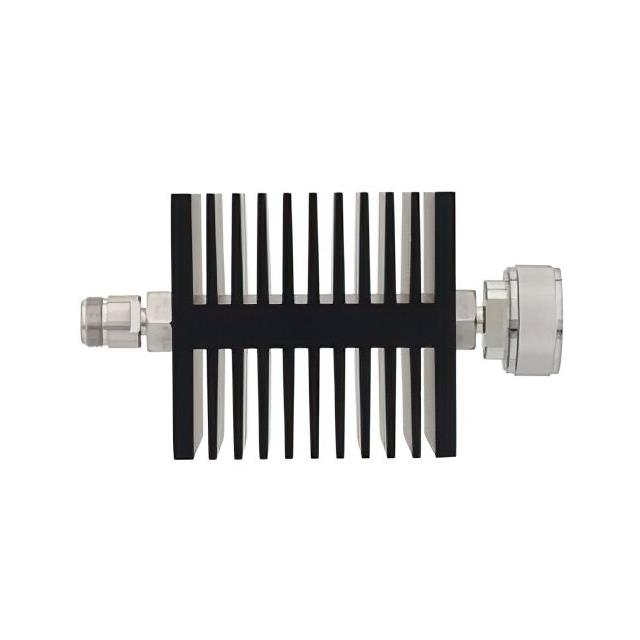

The Pasternack PE7311-50 is a fixed RF attenuator designed for microwave applications. It provides a nominal attenuation of 50 dB with an operating frequency range from DC to 6 GHz. The component features a type N female connector on one side and a 7/16 DIN male connector on the other, facilitating versatile coaxial integration. It is rated to handle up to 50 Watts of power at the stated attenuation value. The unit utilizes a directional design and includes a black anodized aluminum heat sink to manage thermal dissipation during operation.

Feature Summary

• Fixed 50 dB attenuation performance
• Operates from DC to 6 GHz
• Rated for 50 Watts power handling
• Directional design with integrated heat sink

Applications

• RF signal level reduction in test setups
• Microwave system power management
• Signal conditioning for measurement equipment

Procurement Notes

Verify that the specific order matches the PE7311-50 part number to ensure the correct 50 dB attenuation value and 6 GHz frequency limit. Confirm connector compatibility between the N Female and 7/16 DIN Male interfaces before installation. Check power ratings against system requirements to ensure the 50 Watt capacity is sufficient for the intended application environment.

Selection Notes

Select this component when a high attenuation value of 50 dB is required within the 6 GHz bandwidth. The mixed connector interface allows connection between systems utilizing N-type and 7/16 DIN standards. Ensure the application does not exceed the 50 Watt power rating to maintain device integrity and performance stability.

Part Context

This model belongs to Pasternack's series of fixed RF attenuators. Similar models in the family include PE7311-10, PE7311-30, and PE7311-40, which offer different attenuation values but share similar connector configurations and power ratings. These components are part of a broader portfolio of RF and microwave passive components supplied by Pasternack Enterprises.

Replacement Considerations

Direct substitutes must match the 50 dB attenuation, 6 GHz frequency range, and N Female to 7/16 DIN Male interface. Verify that any replacement component maintains the 50 Watt power rating and directional characteristics to ensure equivalent performance in the circuit.
