PE7312-10

Overview

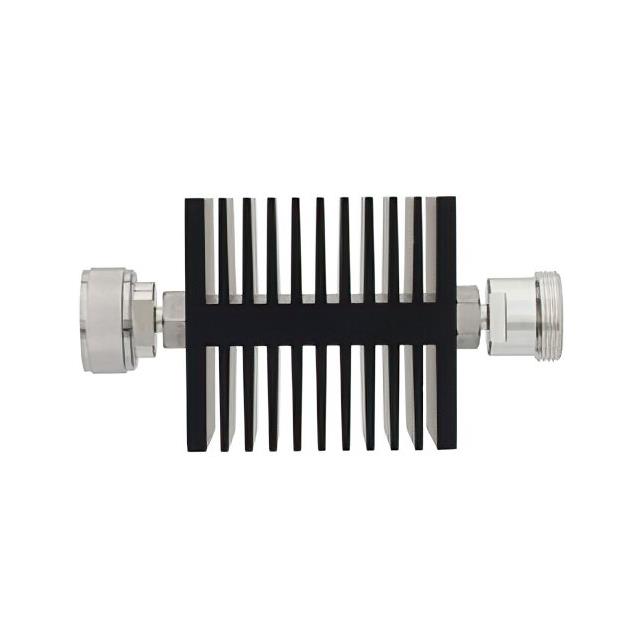

The Pasternack PE7312-10 is a fixed attenuator featuring 7/16 DIN male to 7/16 DIN female directional connectors. It provides a nominal attenuation of 10 dB and operates up to 7.5 GHz. The unit is rated for 50 Watts at the stated attenuation value.

Feature Summary

• Directional signal attenuation with 7/16 DIN male to 7/16 DIN female interface
• Fixed 10 dB attenuation performance
• Operational frequency range extending to 7.5 GHz
• Power handling capacity rated at 50 Watts

Applications

• RF signal level reduction in microwave systems
• Test and measurement equipment calibration
• Signal conditioning in wireless communication infrastructure

Procurement Notes

Verify exact datasheet specifications against manufacturer documentation prior to integration. Confirm connector gender, attenuation tolerance, and power rating match system requirements. Check availability status as supply conditions may vary by region and date.

Selection Notes

Select this component when a 10 dB fixed attenuation value is required within a 7.5 GHz bandwidth. Ensure the 7/16 DIN connector type aligns with existing cabling infrastructure. Verify that the 50 Watt power rating exceeds maximum expected signal levels to prevent damage.

Part Context

This model belongs to Pasternack's fixed attenuator series designed for high-frequency applications. It utilizes robust 7/16 DIN connectors suitable for demanding RF environments. The product line supports various attenuation values and connector configurations for diverse system needs.

Replacement Considerations

Compatible substitutes include other 10 dB fixed attenuators with matching 7/16 DIN interfaces and similar power ratings. Verify frequency response and physical dimensions before substitution.
