PE7312-30

Overview

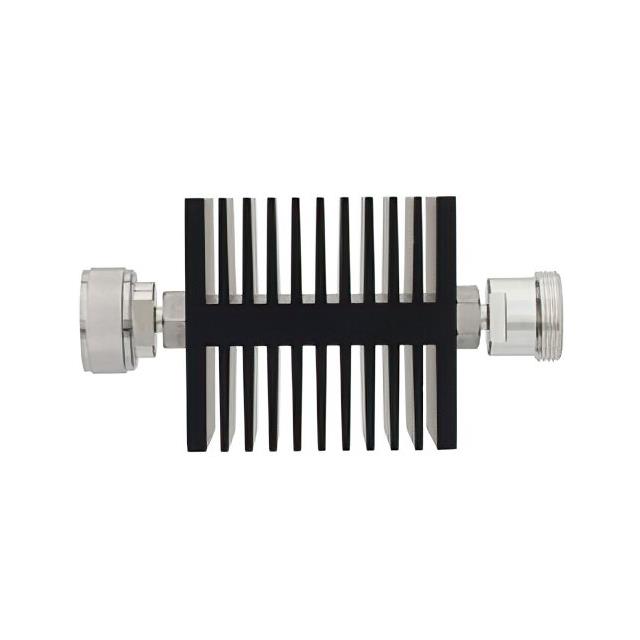

The PE7312-30 is a fixed RF attenuator manufactured by Pasternack. It provides an attenuation value of 30 dB with a frequency range extending from 0 Hz to 7.5 GHz. The component operates at a characteristic impedance of 50 Ohms and supports a power rating of 50 Watts. It utilizes a 7/16 DIN male to 7/16 DIN female interface configuration. The housing is constructed from black anodized aluminum, designed as a directional heatsink body to manage thermal dissipation effectively during high-power operations.

Feature Summary

• Directional design utilizing a 7/16 DIN connector interface for secure mating
• Robust black anodized aluminum construction integrated with a heatsink body
• Capable of handling continuous power loads up to 50 Watts

Applications

• RF signal testing and measurement setups
• High-power microwave system integration
• Signal level reduction in communication infrastructure

Procurement Notes

Verify the specific datasheet version provided by Pasternack Enterprises, Inc. to confirm current manufacturing specifications. Ensure that the 7/16 DIN interface compatibility matches existing system requirements before procurement. Cross-reference the 50W power rating against actual operational conditions to prevent thermal overload. Confirm RoHS compliance status if environmental regulations apply to the intended deployment environment.

Selection Notes

Select this model when a precise 30 dB attenuation is required within the 7.5 GHz bandwidth. The 7/16 DIN interface is suitable for applications demanding robust mechanical connections and higher power handling compared to standard SMA or N-type connectors. Consider the directional nature of the unit for proper signal flow orientation in the circuit path.

Part Context

This component belongs to the Pasternack PE7312 series of fixed attenuators. The series includes variants with different attenuation values, such as the PE7312-6 (6 dB) and PE7312-40 (40 dB). All units in this family share the same 7/16 DIN male-to-female interface, 50 Ohm impedance, and 50 Watt power rating capabilities, differing primarily in their specific decibel loss characteristics.

Replacement Considerations

Compatible substitutes include other Pasternack models within the PE7312 series that match the 30 dB specification. Ensure any replacement maintains the 7/16 DIN interface and 50W power rating. Verify that third-party alternatives offer equivalent frequency performance up to 7.5 GHz.
