PE7313-30

Overview

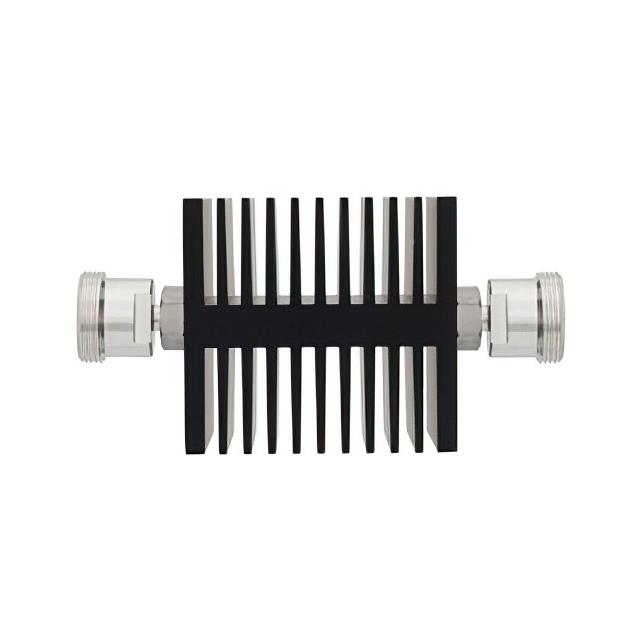

The Pasternack PE7313-30 is a fixed RF attenuator designed for high-frequency applications. It provides an attenuation value of 30 dB with a frequency range spanning from 0 Hz to 7.5 GHz. The component features a 50 Ohm impedance and handles a power rating of 50 Watts. It utilizes a HEX in-line module construction and employs 7/16 DIN female connectors on both input and output ports, ensuring compatibility with standard high-power RF systems.

Feature Summary

• Fixed 30 dB attenuation performance across a wide frequency bandwidth
• High power handling capability rated at 50 Watts
• Robust 7/16 DIN female connector interface for secure mating
• HEX in-line module design for reliable signal reduction

Applications

• RF signal level adjustment in test and measurement setups
• Attenuation in high-power microwave communication links
• Signal conditioning in radar system architectures
• Protection of sensitive receiver inputs from high power levels

Procurement Notes

Verify the specific datasheet version when ordering to ensure compliance with current manufacturing standards. Confirm that the 7/16 DIN female interface matches your system requirements. Check for any updated environmental or thermal specifications relevant to your deployment environment before finalizing procurement decisions.

Selection Notes

Select this model when a fixed 30 dB reduction is required within the 7.5 GHz bandwidth. Ensure the 50 Watt power rating exceeds your maximum operational signal levels. The 7/16 DIN connector type dictates mechanical compatibility; verify mating hardware availability. Consider the HEX module form factor for space-constrained in-line installations.

Part Context

This component belongs to Pasternack's line of passive RF attenuators. It serves as a fixed-value solution for precise signal control. The product series typically includes various attenuation values and connector types. This specific model targets applications requiring high power handling and broad frequency coverage using standardized heavy-duty connectors.

Replacement Considerations

Identify substitutes based on matching 30 dB attenuation, 50 Ohm impedance, and 7/16 DIN female interfaces. Verify that alternative parts support the 7.5 GHz frequency range and 50 Watt power rating. Ensure physical dimensions and mounting styles are compatible with existing HEX module configurations.
