PE7313-50

Overview

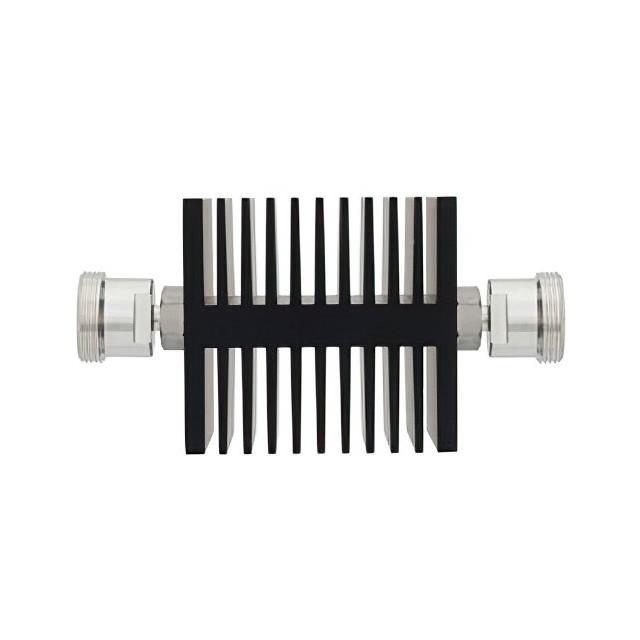

The Pasternack PE7313-50 is a fixed RF attenuator designed for high-power applications. It provides a nominal attenuation of 50 dB with a frequency range extending from 0 Hz to 6 GHz. The component features 7/16 DIN female connectors on both input and output ports, ensuring compatibility with standard microwave systems. It is rated to handle up to 50 Watts of power at the stated attenuation value. The housing is constructed from black anodized aluminum, serving as a heatsink body to dissipate thermal energy effectively during operation.

Feature Summary

• High power handling capability rated at 50 Watts
• Broadband frequency performance up to 6 GHz
• Robust black anodized aluminum heatsink construction

Applications

• Microwave signal testing and measurement setups
• RF system power level reduction
• Telecommunications infrastructure maintenance

Procurement Notes

Verify the specific connector gender and interface type against system requirements before purchase. Confirm that the operating frequency does not exceed the 6 GHz upper limit. Ensure the thermal environment supports the passive dissipation provided by the aluminum heatsink body. Check RoHS compliance status if environmental regulations apply to the deployment location.

Selection Notes

Choose this model when a precise 50 dB reduction is required within the 6 GHz bandwidth. Consider the 7/16 DIN interface size for physical space constraints in rack-mounted equipment. Evaluate the 50 Watt power rating against peak signal levels to prevent component damage. Compare with lower attenuation variants if the system requires different signal scaling factors.

Part Context

This component belongs to Pasternack's line of fixed coaxial attenuators. These devices are passive components used to reduce signal amplitude without introducing significant distortion. The series typically includes various attenuation values and connector types to support diverse RF engineering needs across industrial and commercial sectors.

Replacement Considerations

Direct substitutes must match the 50 dB attenuation, 7/16 DIN female interface, and 6 GHz frequency range. Verify power handling ratings to ensure equivalent thermal performance. Cross-reference manufacturer datasheets for insertion loss and VSWR specifications to maintain system integrity.
