PE7313-6

Overview

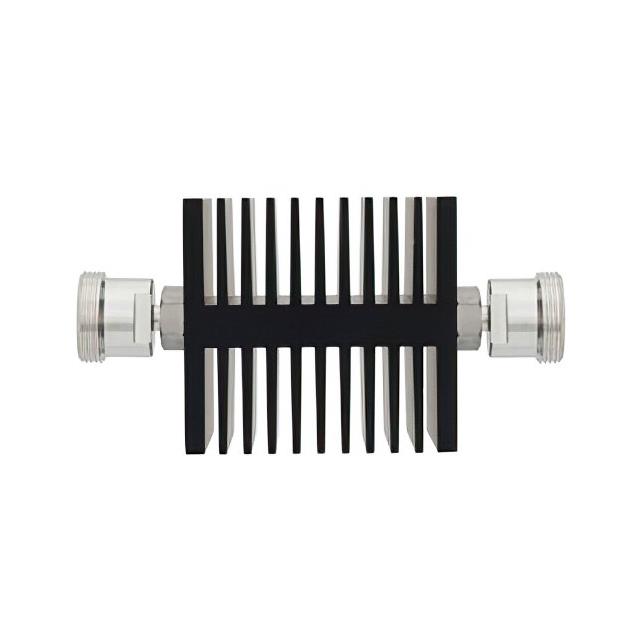

The PE7313-6 is a fixed attenuator manufactured by Pasternack Enterprises, Inc. It provides an attenuation value of 6 dB and operates up to a frequency of 7.5 GHz. The component utilizes 7/16 DIN female connectors for both input and output interfaces. It is rated for a maximum power handling capacity of 50 watts. This device is designed for directional applications within RF systems requiring precise signal reduction.

Feature Summary

• Provides fixed 6 dB attenuation
• Operates up to 7.5 GHz
• Features 7/16 DIN female connectors

Applications

• RF signal level adjustment
• Test and measurement setups
• Communication system integration

Procurement Notes

Verify the specific datasheet version for the PE7313-6 to confirm mechanical dimensions and connector tolerances. Ensure compatibility with 7/16 DIN mating hardware in the target assembly. Check for any regional distribution restrictions or supply limitations that may affect procurement timelines.

Selection Notes

Select this model when a fixed 6 dB loss is required at frequencies up to 7.5 GHz. The 7/16 DIN interface suits high-power applications up to 50 watts. Consider physical size and mounting requirements relative to the system enclosure constraints.

Part Context

This component belongs to the Pasternack fixed attenuator series. It serves as a passive RF device for reducing signal amplitude without distortion. The 7/16 DIN standard ensures robust connectivity for industrial and commercial radio frequency environments.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Evaluate other 6 dB fixed attenuators with matching 7/16 DIN interfaces and 50-watt ratings if replacement is necessary.
