PE7314-10

Overview

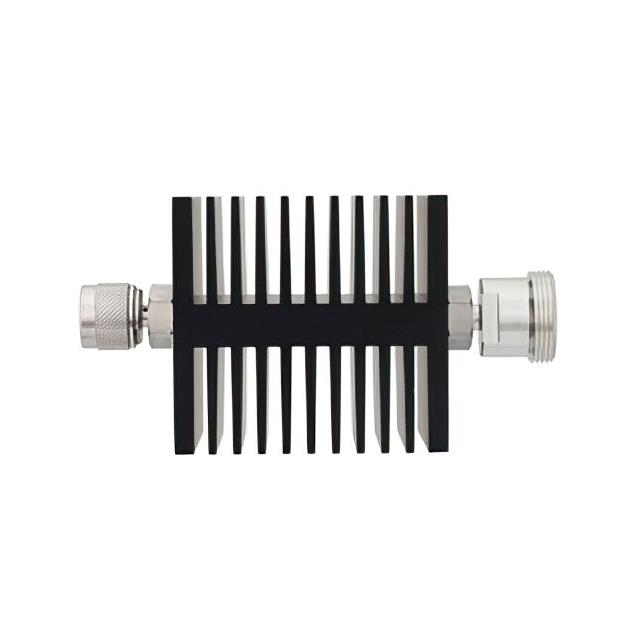

The Pasternack PE7314-10 is a fixed RF attenuator module designed for high-frequency applications. It provides a nominal attenuation of 10 dB with a frequency range extending from 0 Hz to 7.5 GHz. The component operates at a characteristic impedance of 50 Ohms and supports a maximum power rating of 50 Watts. It features an N Male connector on one side and a 7/16 DIN Female connector on the other, facilitating directional signal reduction in coaxial systems.

Feature Summary

• Provides precise 10 dB signal attenuation across a wide bandwidth up to 7.5 GHz
• Engineered for high-power handling capabilities rated at 50 Watts
• Utilizes robust N Male to 7/16 DIN Female interface configuration for secure connections

Applications

• RF signal level control in microwave communication systems
• Test and measurement equipment requiring stable attenuation
• Base station infrastructure signal conditioning

Procurement Notes

Verify that the specific order matches the PE7314-10 part number exactly. Confirm compatibility between N Male and 7/16 DIN Female connectors within your system architecture. Ensure operational power levels do not exceed the 50 Watt rating to maintain component integrity and performance specifications during deployment.

Selection Notes

Select this model when a fixed 10 dB reduction is required within the 0 to 7.5 GHz spectrum. Consider the mixed connector types (N Male and 7/16 DIN Female) for interface compatibility. Evaluate the 50 Watt power capacity against peak signal loads to ensure reliable operation without thermal degradation or impedance mismatch issues.

Part Context

This component belongs to Pasternack's line of fixed attenuators, specifically utilizing the PE7314 series designation. It serves as a passive device for managing signal strength in coaxial environments. The design focuses on maintaining consistent attenuation values across the specified frequency range while supporting substantial power throughput.

Replacement Considerations

Direct substitutes include models with identical 10 dB attenuation, 50 Ohm impedance, and 50 Watt rating within the same frequency range. Verify connector compatibility, particularly the transition between N Male and 7/16 DIN Female interfaces, when evaluating alternative components.
