PE7314-20

Overview

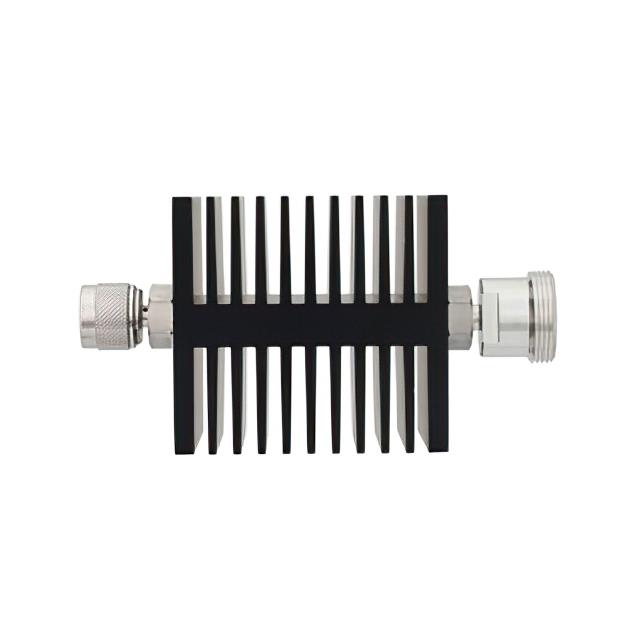

The Pasternack PE7314-20 is a fixed RF attenuator module designed for high-frequency signal management. It provides a precise attenuation value of 20 dB, ensuring accurate signal level reduction in RF circuits. The component operates within a frequency range of 0 Hz to 7.5 GHz, supporting broadband applications. It features a 50 Ohm impedance match and handles up to 50 Watts of power, making it suitable for demanding environments. Constructed with robust materials, this module ensures reliable performance across various test and measurement setups.

Feature Summary

• Provides fixed 20 dB attenuation for precise signal control
• Operates from DC to 7.5 GHz for broadband compatibility
• Supports 50W power handling capacity
• Features 50 Ohm impedance matching

Applications

• General-purpose RF test and measurement instrumentation
• Telecommunications equipment signal conditioning
• Laboratory calibration and verification setups

Procurement Notes

Verify the specific part number PE7314-20 against official Pasternack documentation to confirm the 20 dB attenuation value and 7.5 GHz frequency range. Ensure the 50W power rating aligns with your system requirements. Check for RoHS compliance status if environmental regulations apply. Confirm connector types and physical dimensions match your integration needs before ordering.

Selection Notes

Select this attenuator when a fixed 20 dB reduction is required within a 50 Ohm system operating up to 7.5 GHz. Consider the 50W power handling capability for high-power applications. Compare with other Pasternack models if different attenuation values or frequency ranges are needed. Ensure the module form factor fits your available space constraints.

Part Context

This component belongs to the Pasternack RF Attenuators series, which offers various fixed and variable attenuation solutions. The PE7314-20 specifically addresses the need for stable, high-power attenuation in broadband RF environments. It complements Pasternack's broader portfolio of connectors, cables, and adapters used in test and measurement industries.

Replacement Considerations

Consult official Pasternack resources for parametric equivalents. Verify that any substitute matches the 20 dB attenuation, 7.5 GHz frequency limit, and 50W power rating. Ensure impedance and connector compatibility remain unchanged to maintain system integrity.
