PE7314-40

Overview

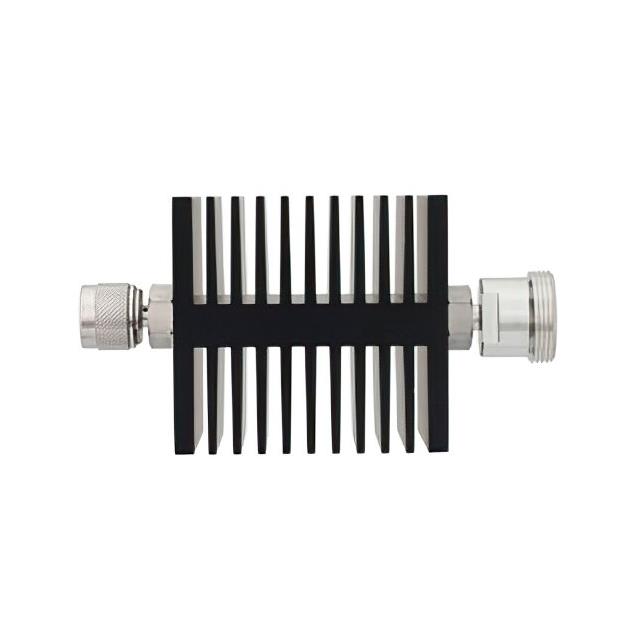

The Pasternack PE7314-40 is a fixed coaxial attenuator designed for RF applications. It features an N male connector on one end and a 7/16 DIN female connector on the other, facilitating interface conversion within signal chains. The component operates at a nominal impedance of 50 Ohms and provides a precise attenuation value of 40 dB. Constructed from black anodized aluminum, it supports a maximum power rating of 50 Watts. The device is rated for operation up to 18 GHz with a maximum VSWR of 1.45:1.

Feature Summary

• Provides fixed 40 dB attenuation for signal level reduction
• Converts between N male and 7/16 DIN female interfaces
• Constructed from durable black anodized aluminum housing

Applications

• RF test and measurement setups requiring precise signal reduction
• Telecommunications infrastructure equipment
• Aerospace and defense radar systems

Procurement Notes

Verify that the specific part number matches the required attenuation value and frequency range for your application. Confirm connector gender and type compatibility with existing system components. Ensure the power handling requirements do not exceed the 50 Watt rating under operational conditions.

Selection Notes

Select this model when a high attenuation value of 40 dB is necessary alongside interface conversion between N-type and 7/16 DIN connectors. Consider the 18 GHz frequency limit and 50 Watt power capacity against system specifications. This directional attenuator is suitable for applications requiring stable performance in harsh environments due to its metal construction.

Part Context

This component belongs to Pasternack's line of fixed coaxial attenuators. These passive devices are engineered to reduce signal amplitude without introducing significant distortion. The series typically includes various attenuation values and connector combinations to support diverse RF engineering needs across multiple industries.

Replacement Considerations

Ensure any substitute component maintains the 40 dB attenuation value and 50 Ohm impedance. Verify that replacement connectors match the N male and 7/16 DIN female configuration. Check that the alternative part meets or exceeds the 18 GHz frequency rating and 50 Watt power handling capabilities.
